Underbody Rear Air Outer Deflector Replacement (without HP9)

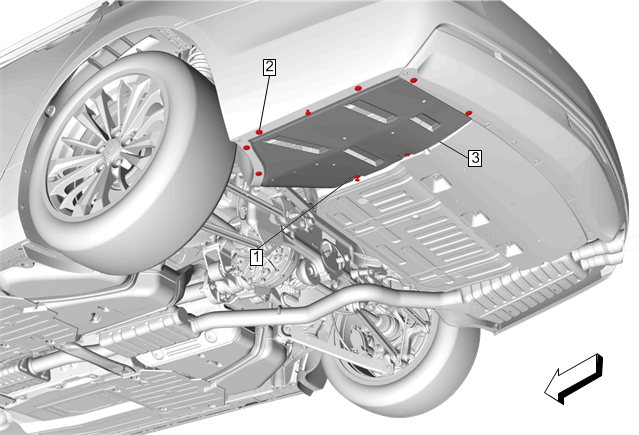

GM4244349
Callout Component Name
Preliminary Procedure
Raise and support the vehicle. Lifting and Jacking the Vehicle
1 Retainer
2 Underbody Rear Air Outer Deflector Fastener [8X]
CAUTION:

Refer to Fastener Caution


Tighten
2.5 N.m (22 lb in)
3 Underbody Rear Air Outer Deflector
