Front Bumper Fascia Replacement (Without UV3)

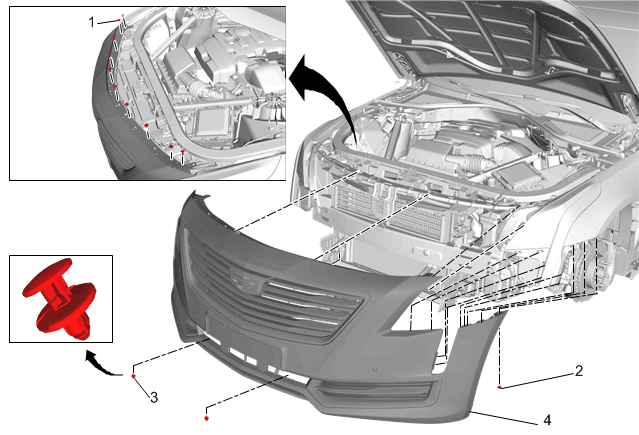

Callout	Component Name
Preliminary Procedure Front Compartment Front Sight Shield Replacement Front Wheelhouse Liner Replacement Front Bumper Fascia Lower Stiffener Replacement
1	Front Bumper Fascia Bolt [10x] CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Front Bumper Fascia Screw [2x] Tighten 2.5 N.m (22 lb in)
3	Front Bumper Fascia Retainer [2x]
4	Front Bumper Fascia Procedure Carefully push a small nylon wedge between the fascia and the front fascia guide. Insert a small flat-bladed tool into the fascia slot and depress the snaps one at a time and pull on the fascia at the same time to gradually remove the fascia from the front fascia guide. Disconnect the electrical connectors. Transfer components as necessary.
