Front Bumper Fascia Lower Stiffener Replacement

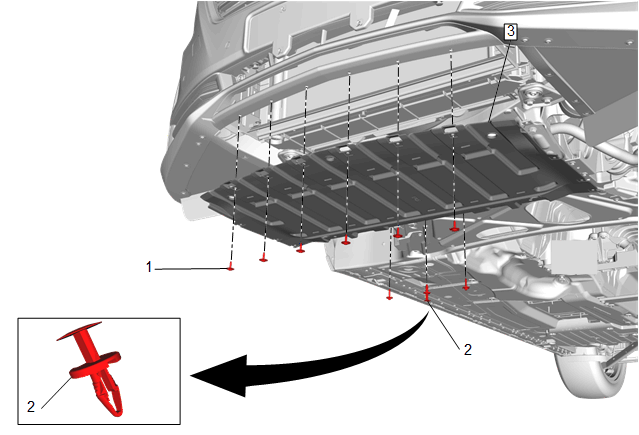

GM4255260
Callout Component Name

Preliminary Procedure

  1. Remove 2 front tire front air deflector bolts from each side. Front Tire Front Air Deflector Replacement
  2. Underbody Front Air Deflector Replacement
1 Front Bumper Fascia Lower Stiffener Bolt [8x]
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Front Bumper Fascia Lower Stiffener Retainer
3 Front Bumper Fascia Lower Stiffener
