Front Compartment Front Sight Shield Replacement

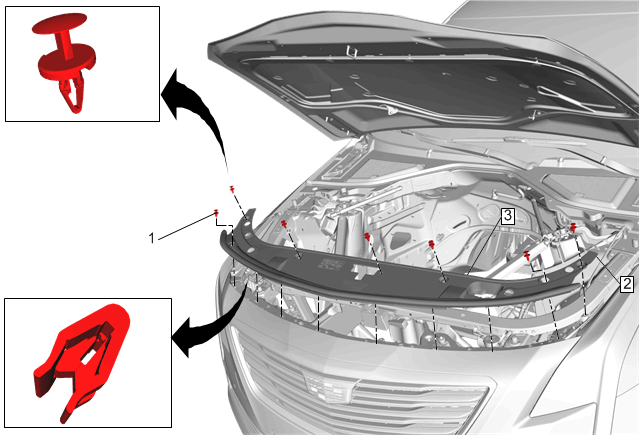

GM4254944
Callout Component Name
1 Front Compartment Front Sight Shield Retainer [7x]
2 Front Compartment Front Sight Shield Clip [8x]
NOTE:

Using a suitable tool, disengage the hidden clips along the front edge of the front compartment front sight shield.
3 Front Compartment Front Sight Shield
