Front Tire Front Air Deflector Replacement

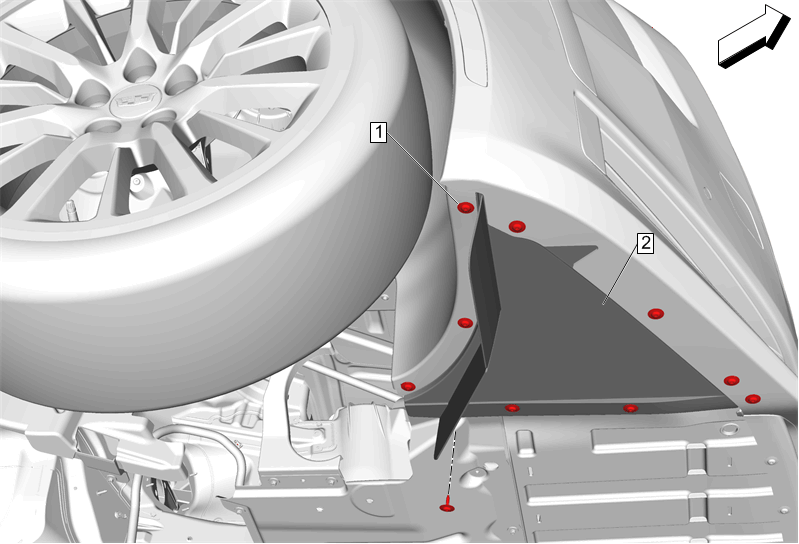

GM4245618
Callout Component Name
Preliminary Procedure
Raise and support the vehicle. Lifting and Jacking the Vehicle
1 Front Tire Front Air Deflector Fastener [10x]
CAUTION:

Refer to Fastener Caution


Tighten
2.5 N.m (22 lb in)
2 Front Tire Front Air Deflector
