Underbody Front Air Deflector Replacement

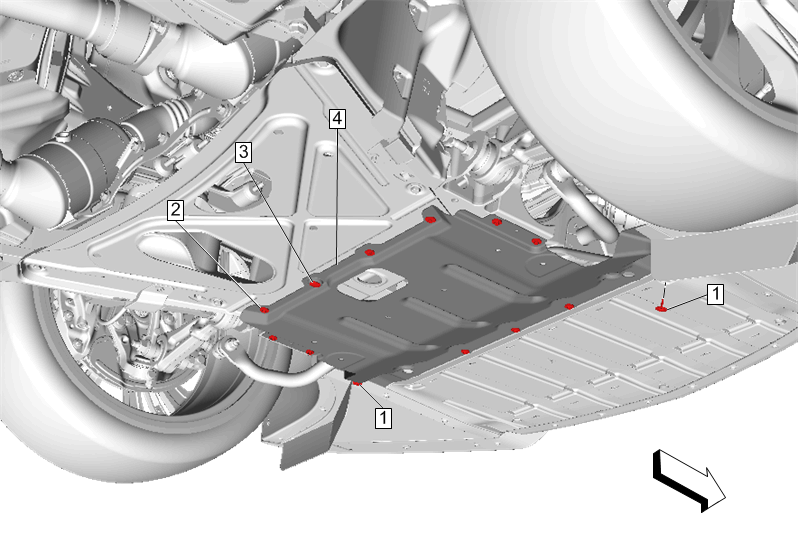

| Callout | Component Name |
|---|---|
| Preliminary Procedure Raise and support the vehicle. Lifting and Jacking the Vehicle |
|
| 1 | Front Tire Front Air Deflector Fastener [2x]
CAUTION:
Refer to Fastener Caution Tighten 2.5 N.m (22 lb in) |
| 2 | Underbody Front Air Deflector Bolt [11x] Tighten 2.5 N.m (22 lb in) |
| 3 | Retainer |
| 4 | Underbody Front Air Deflector |
