Rear Window Panel Trim Replacement (Without DB3)

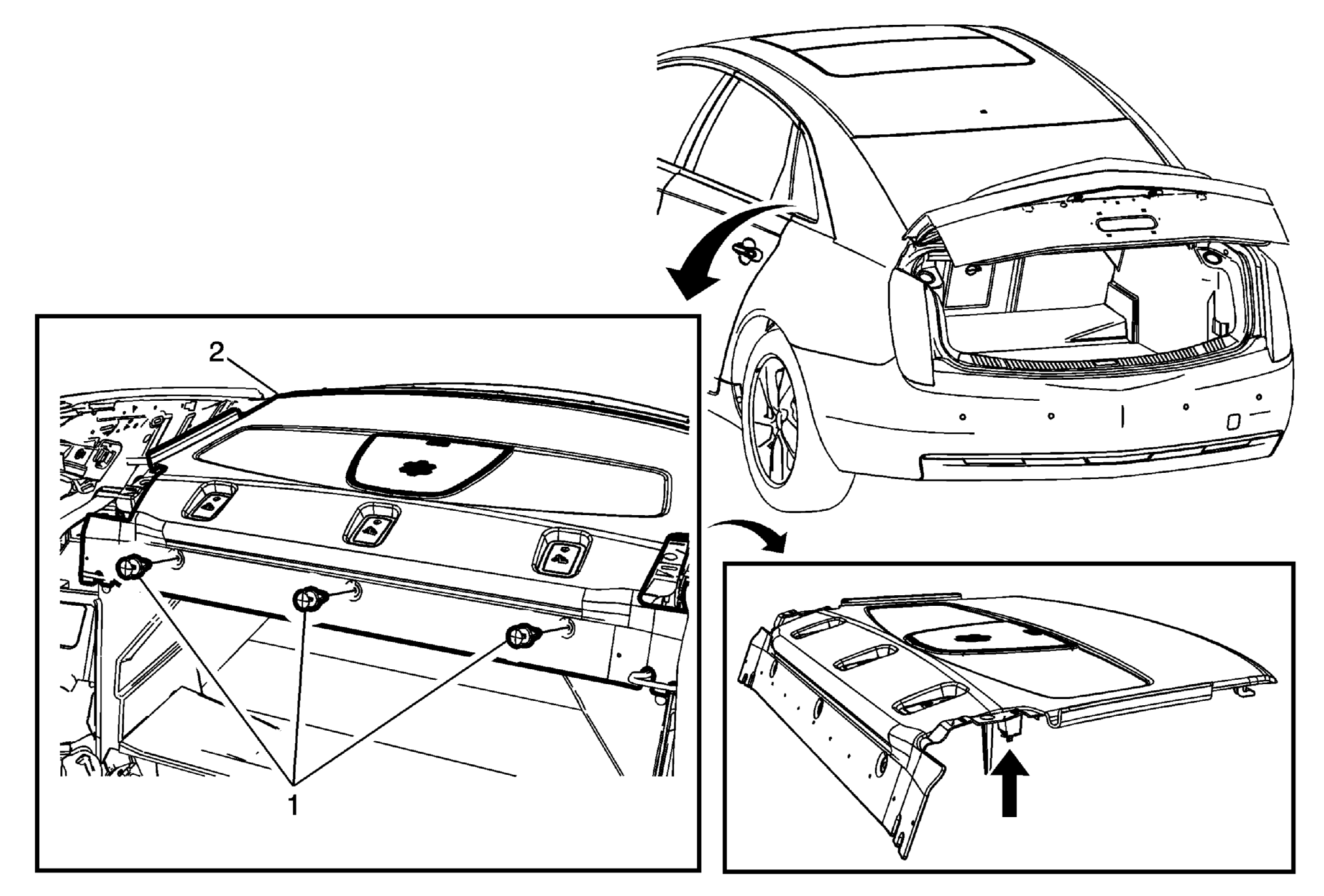

Fig 1: Rear Window Panel Trim & Fasteners (Without DB3)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the quarter window trim finish panel. Refer to Quarter Window Trim Finish Panel Replacement . Remove the body side rear window garnish molding. Refer to Body Side Rear Window Garnish Molding Replacement .
1	Rear Window Panel Trim Fastener (Qty: 3) NOTE: There are two metal clips on the underside of rear window panel. See view above for location.
2	Rear Window Panel Trim Assembly Procedure When replacing the rear window panel trim assembly, transfer all necessary components.

Callout

Component Name

Preliminary Procedures

Remove the quarter window trim finish panel. Refer to Quarter Window Trim Finish Panel Replacement .
Remove the body side rear window garnish molding. Refer to Body Side Rear Window Garnish Molding Replacement .

Rear Window Panel Trim Fastener (Qty: 3)

NOTE:

There are two metal clips on the underside of rear window panel. See view above for location.

Rear Window Panel Trim Assembly
Procedure
When replacing the rear window panel trim assembly, transfer all necessary components.
