Rear Compartment Side Trim Replacement - Left Side

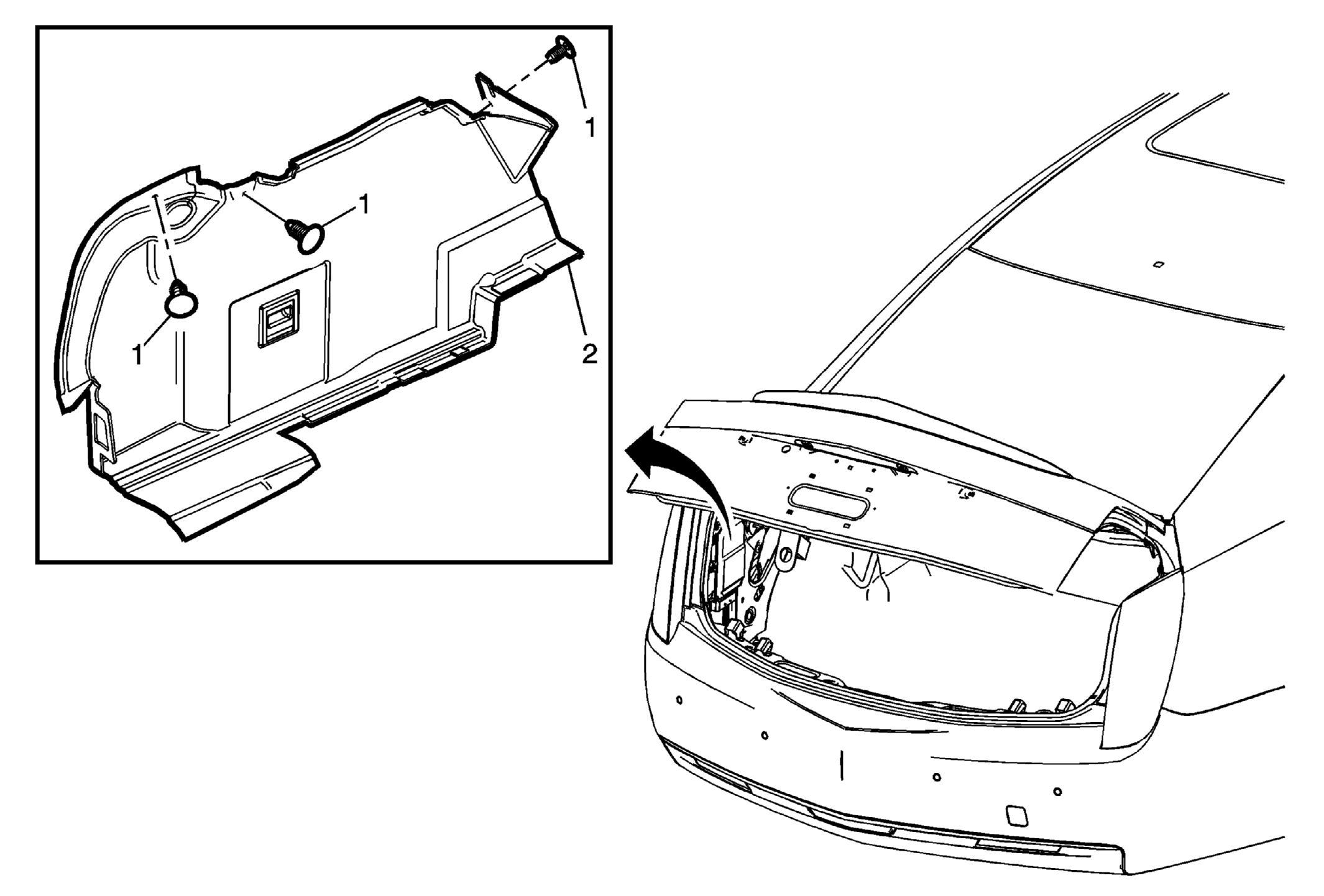

Fig 1: Rear Compartment Side Trim & Retainers - Left Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear compartment floor panel carpet. Refer to Rear Compartment Floor Panel Carpet Replacement . Remove the rear end trim finish panel. Refer to Rear End Trim Finish Panel Replacement . Fold down rear seat to access retainer.
1	Rear Compartment Side Trim Retainer (Qty: 3) Procedure Retainers are to be cut off when replacing the rear compartment side trim.
2	Rear Compartment Side Trim Assembly - Left Side

Callout

Component Name

Preliminary Procedures

Remove the rear compartment floor panel carpet. Refer to Rear Compartment Floor Panel Carpet Replacement .
Remove the rear end trim finish panel. Refer to Rear End Trim Finish Panel Replacement .
Fold down rear seat to access retainer.

Rear Compartment Side Trim Retainer (Qty: 3)
Procedure
Retainers are to be cut off when replacing the rear compartment side trim.

Rear Compartment Side Trim Assembly - Left Side
