Rear Compartment Floor Panel Carpet Replacement

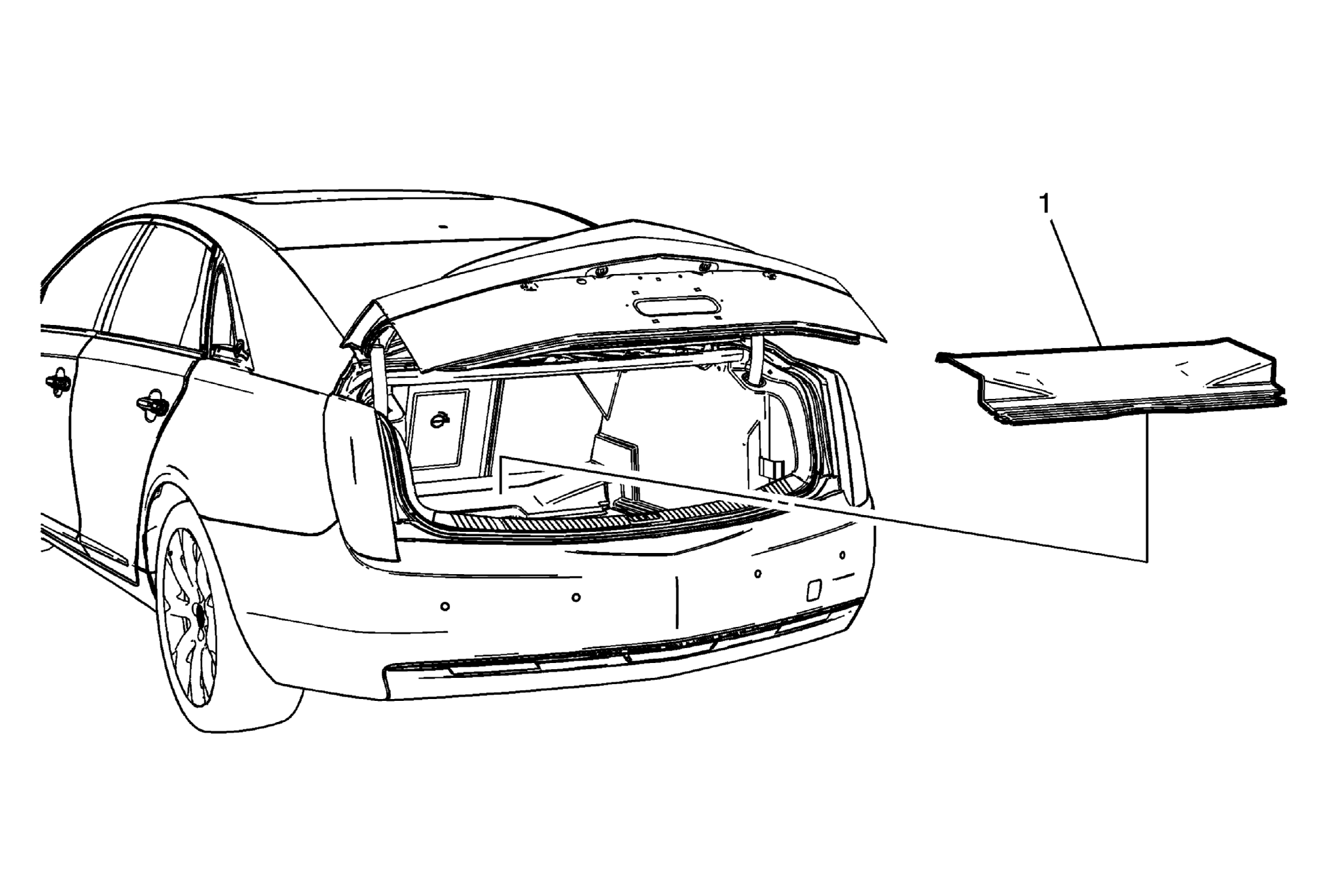

Fig 1: Rear Compartment Floor Panel Carpet

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Remove the rear compartment floor panel trim. Refer to Rear Compartment Floor Panel Trim Replacement .
1	Rear Compartment Floor Panel Carpet Assembly
