Rear End Trim Finish Panel Replacement

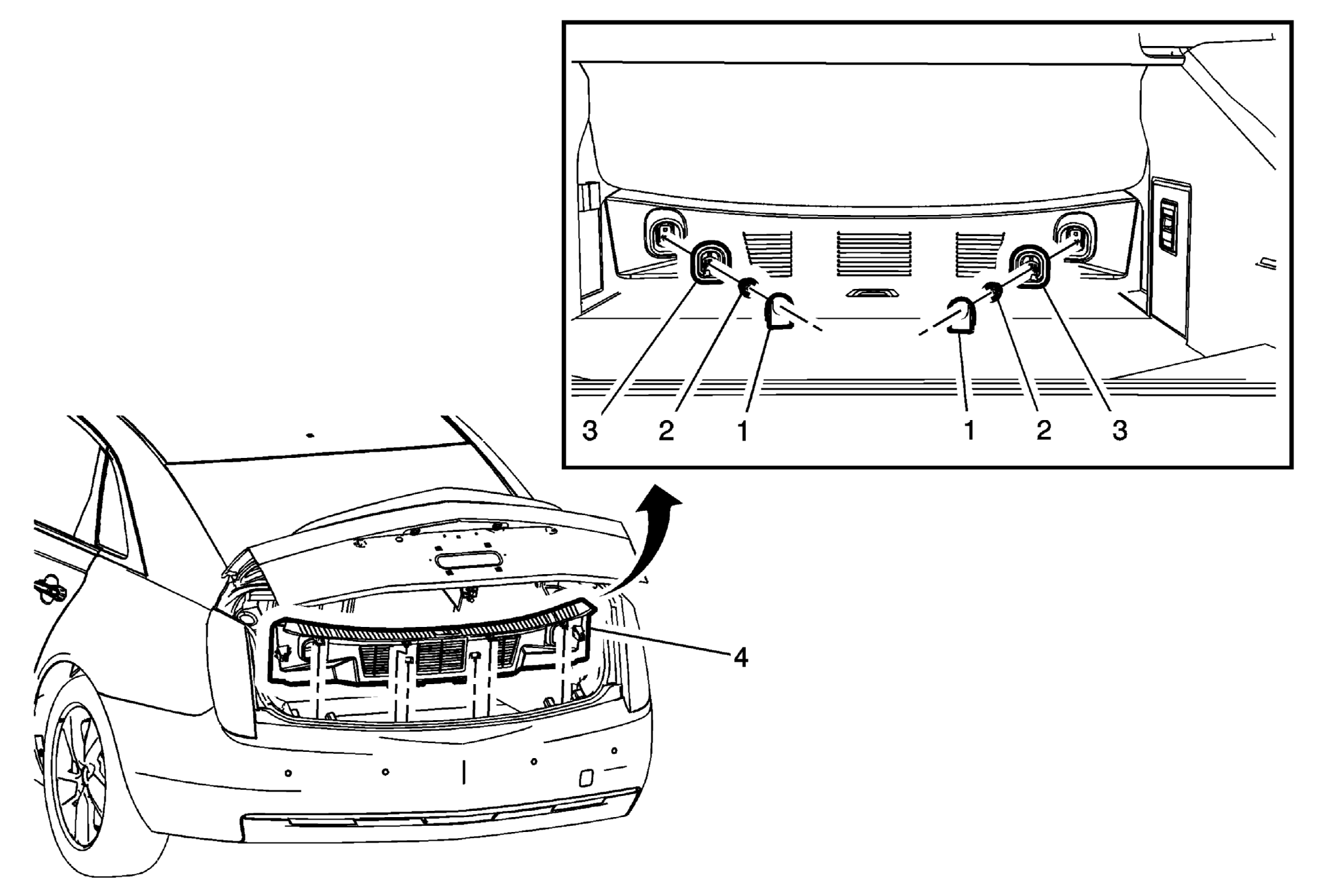

Fig 1: Rear End Trim Finish Panel & Mounting Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear compartment floor panel trim. Refer to Rear Compartment Floor Panel Trim Replacement . Partially remove the rear compartment opening weatherstrip. Refer to Rear Compartment Lid Weatherstrip Replacement .
1	Cargo Tie Down Loop Cap (Qty: 2)
2	Cargo Tie Down Loop Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 20 N.m (15 lb ft)
3	Cargo Tie Down Loop Assembly
4	Rear End Trim Finish Panel Assembly
