Instrument Panel Trim Plate Replacement

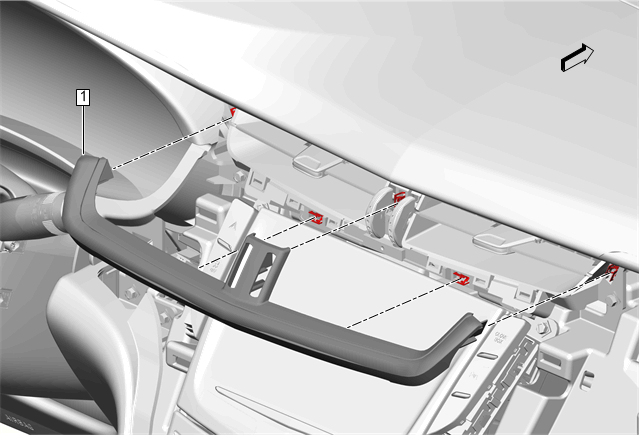

Fig 1: Instrument Panel Trim Plate
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
Preliminary Procedure
Instrument Panel Trim Panel Replacement - Center
Instrument Panel Trim Panel Replacement - Right Side
1
Instrument Panel Trim Plate
Procedure
Use a flat bladed plastic trim tool in order to release the retainers securing the trim plate to the instrument panel assembly.
