Instrument Panel Compartment Door Latch Replacement

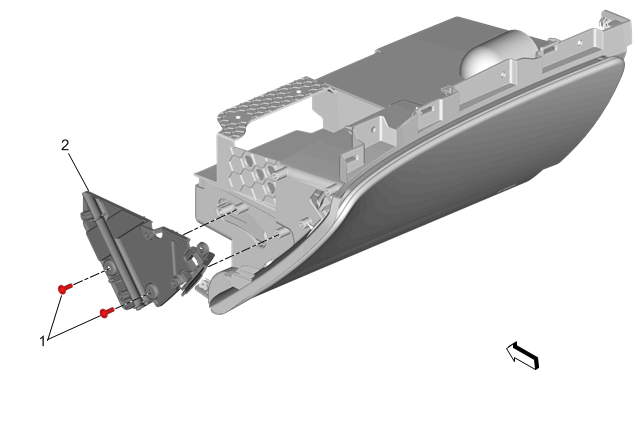

Fig 1: Instrument Panel Compartment Door Latch

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the instrument panel compartment door latch actuator. Refer to Instrument Panel Compartment Door Latch Actuator Replacement . Remove the instrument panel compartment door dampener. Refer to Instrument Panel Compartment Door Dampener Replacement .
1	Instrument Panel Compartment Bolt (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Instrument Panel Compartment Door Latch

Callout

Component Name

Preliminary Procedures

Remove the instrument panel compartment door latch actuator. Refer to Instrument Panel Compartment Door Latch Actuator Replacement .
Remove the instrument panel compartment door dampener. Refer to Instrument Panel Compartment Door Dampener Replacement .

Instrument Panel Compartment Bolt (Qty: 2)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Instrument Panel Compartment Door Latch
