Instrument Panel Compartment Door Latch Actuator Replacement

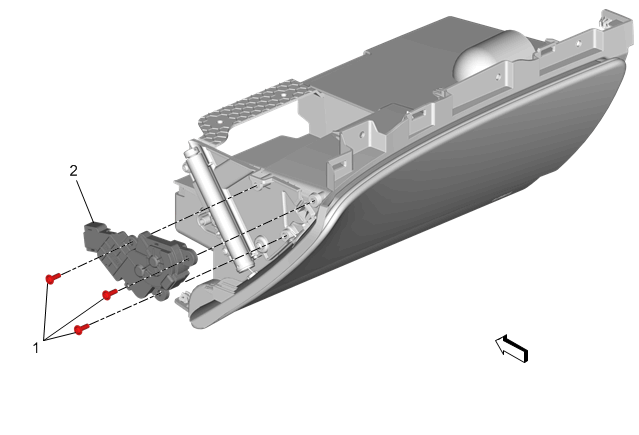

Fig 1: Instrument Panel Compartment Door Latch Actuator
GM3824905Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Remove the instrument panel compartment. Refer to Instrument Panel Compartment Replacement .
1 Instrument Panel Compartment Door Latch Actuator Bolt (Qty: 3)
CAUTION:

Refer to Fastener Caution .


Tighten
2.5 N.m (22 lb in)
2 Instrument Panel Compartment Door Latch Actuator
