Instrument Panel Compartment Door Dampener Replacement

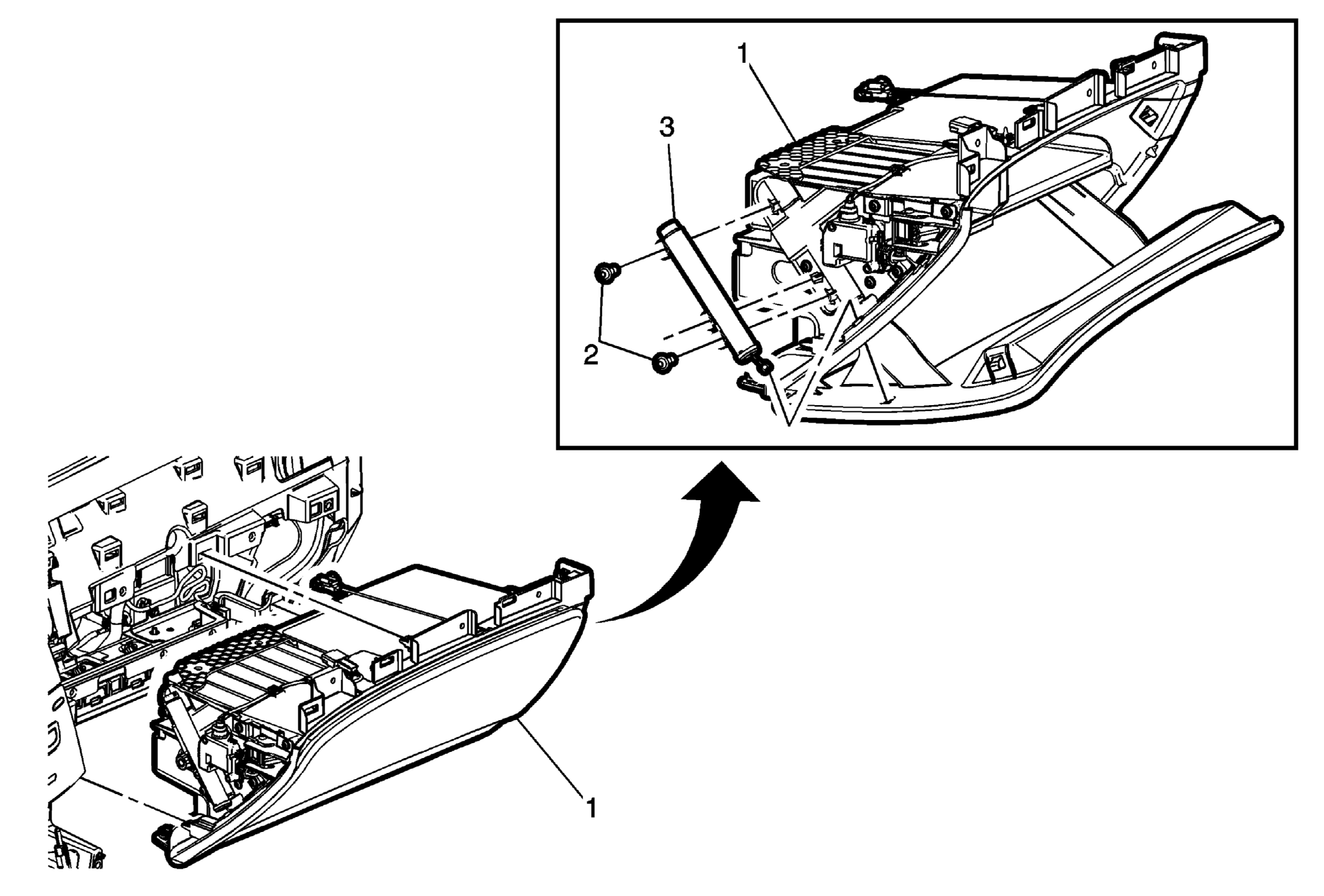

Fig 1: Instrument Panel Compartment, Door Dampener & Fasteners

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Instrument Panel Compartment Refer to Instrument Panel Compartment Replacement .
2	Instrument Panel Compartment Door Dampener Fasteners (Qty: 2) CAUTION: Refer to Fastener Caution .
3	Instrument Panel Compartment Door Dampener Procedure  Disconnect the instrument panel compartment door dampener from the compartment door.
