Front Floor Panel Carpet Replacement - Right Side

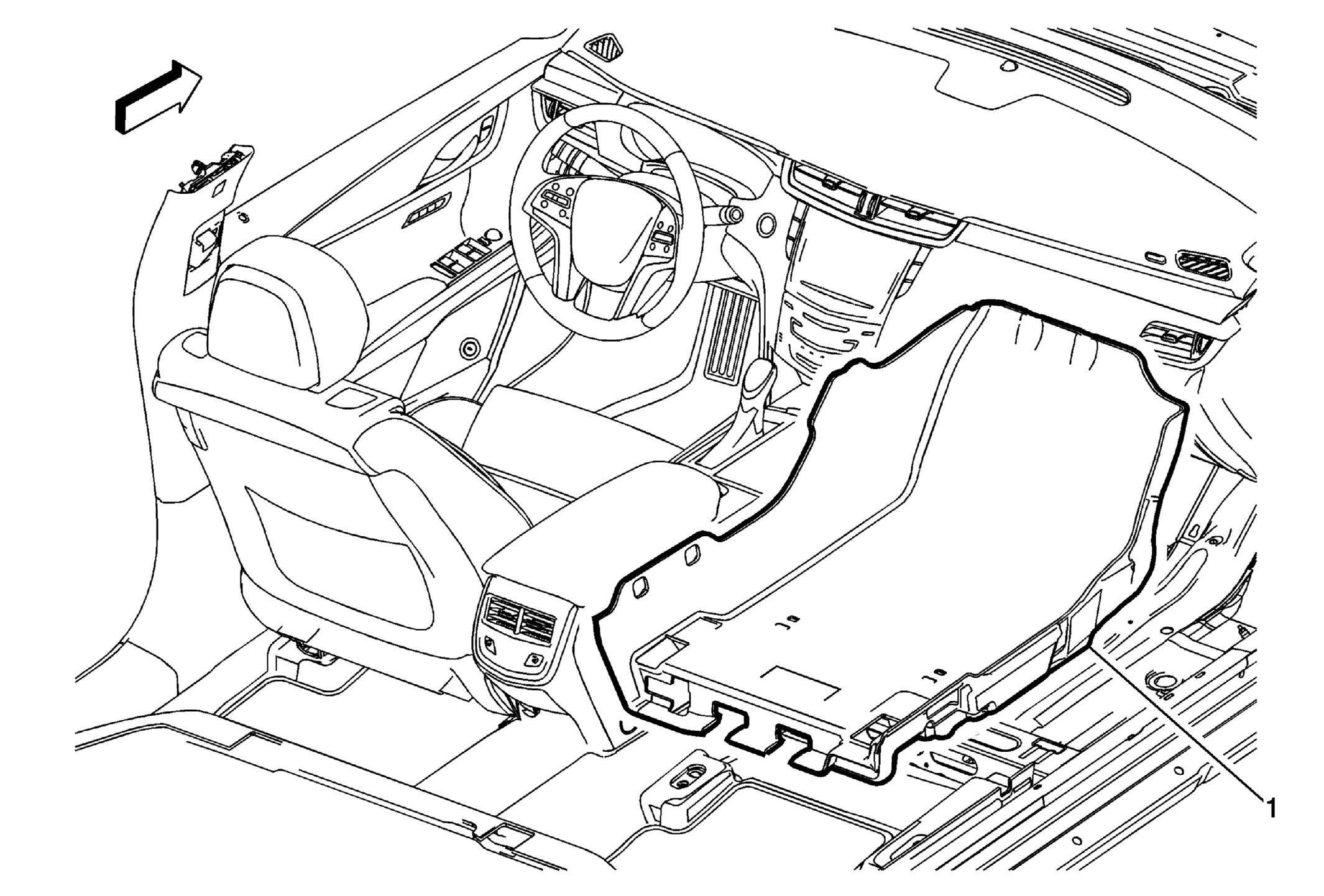

Fig 1: Front Floor Panel Carpet - Right Side

GM2756556

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedures

Remove the passenger seat. Refer to Driver or Passenger Seat Removal and Installation .
Remove the passenger side front side door sill garnish molding. Refer to Front Side Door Sill Garnish Molding Replacement .
Remove the front floor console extension panel - right side. Refer to Front Floor Console Extension Panel Replacement - Right Side .

1

Front Floor Panel Carpet Assembly - Right Side
