Front Side Door Sill Garnish Molding Replacement

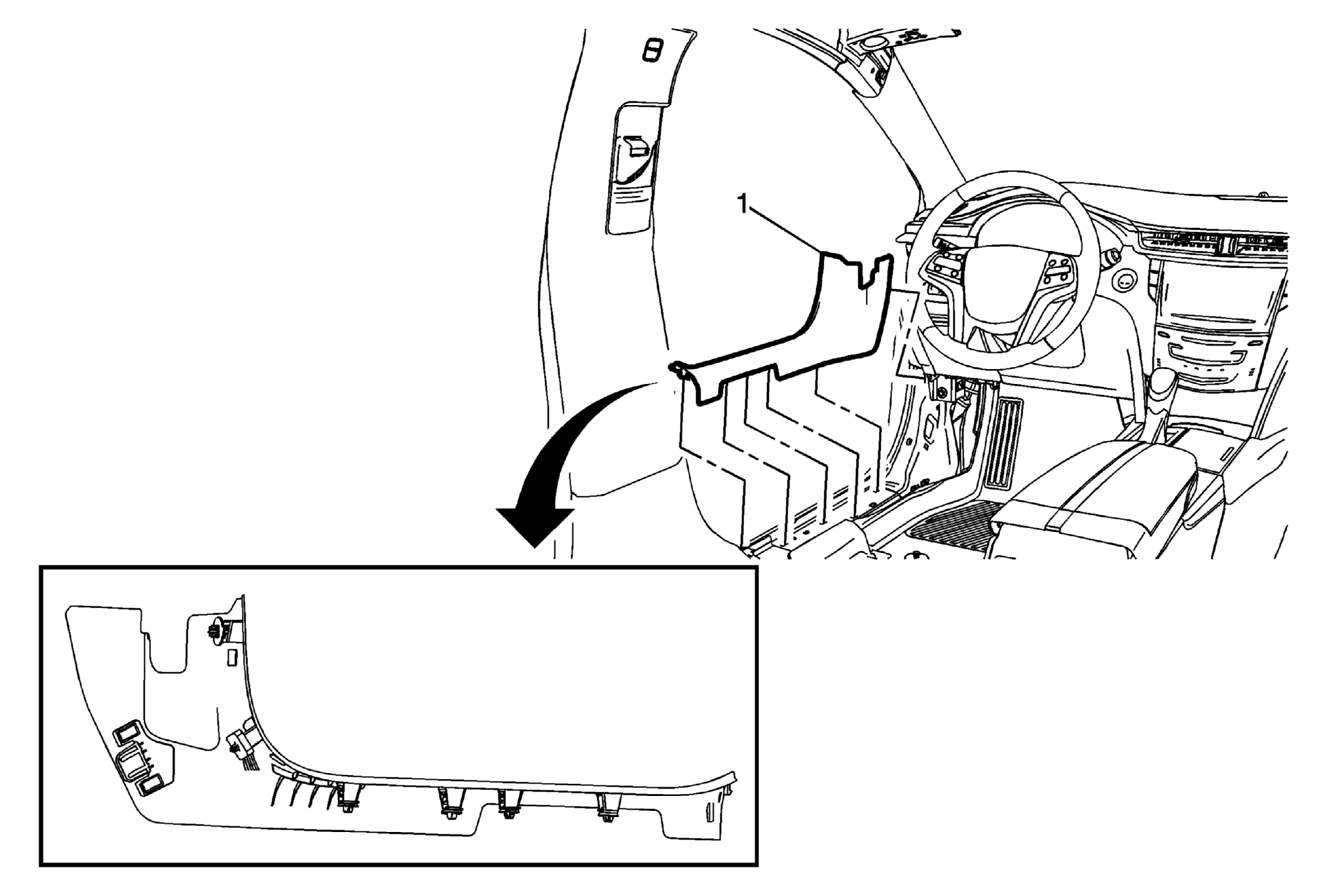

Fig 1: Front Side Door Sill Garnish Molding
GM2757583Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Front Side Door Sill Garnish Molding Assembly

Procedure

  1. Pull toward the rear of the vehicle to disengage integral clips.
  2. Disconnect the electrical connector, if equipped.
  3. Reposition the front floor panel carpet as needed.
