Front Floor Console Extension Panel Replacement - Right Side

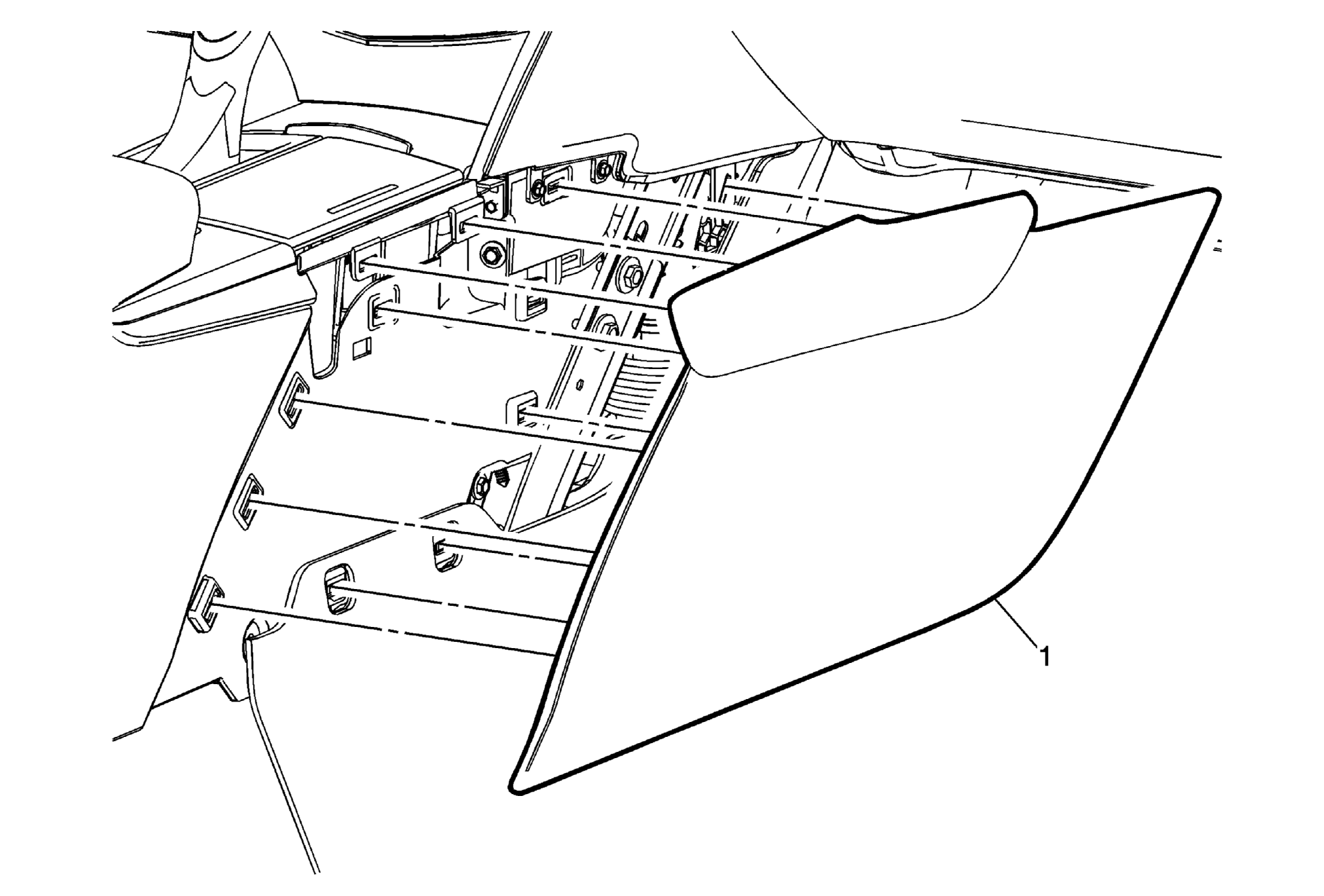

Fig 1: Front Floor Console Extension Panel - Right Side
GM2715015Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Front Floor Console Extension Panel - Right

Procedure

  1. Move the front seat rearward to access the panel.
  2. Use a flat bladed plastic trim tool to aid in the removal of the panel from the front floor console assembly.
