Hazard Warning Switch Replacement

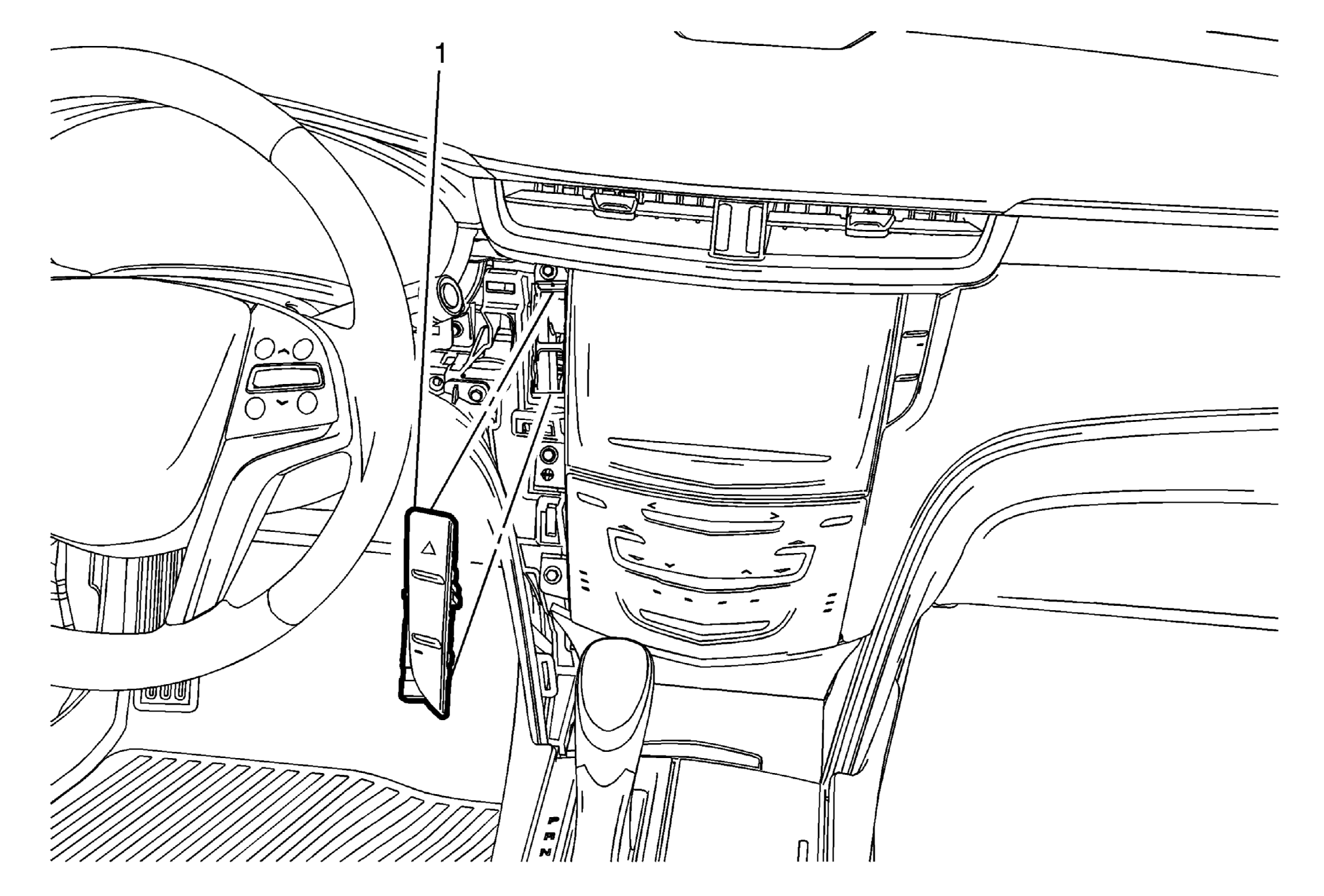

Fig 1: Hazard Warning Switch
GM2756926Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Remove the instrument panel trim plate. Refer to Instrument Panel Trim Plate Replacement .
  2. Remove the instrument panel trim panel - center. Refer to Instrument Panel Trim Panel Replacement - Center .
1 Hazard Warning Switch

Procedure

  1. Using the appropriate tool release the switch from the radio control assembly bracket.
  2. Disconnect the electrical connector.
