Rear Compartment Lid Hinge Replacement

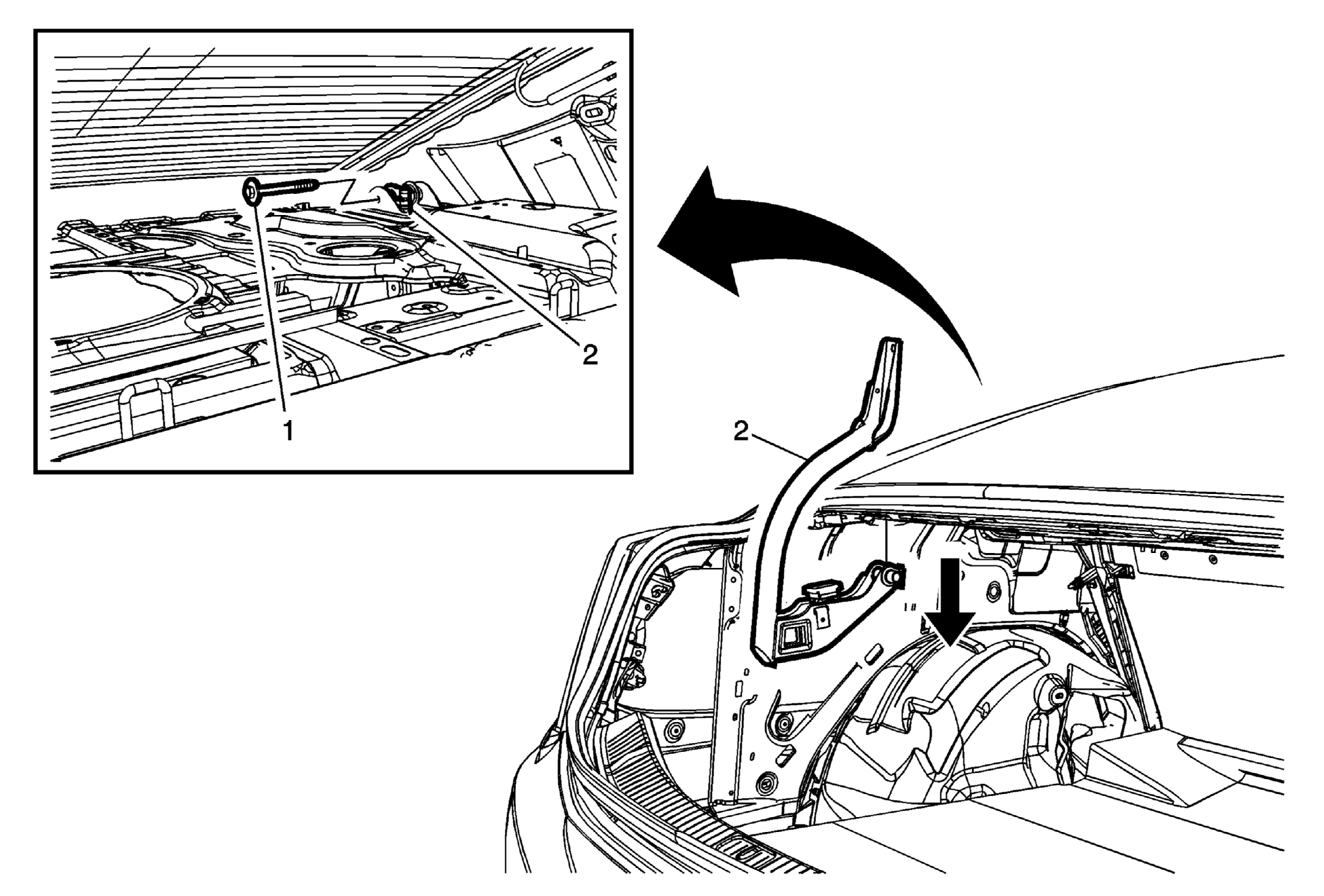

Fig 1: Rear Compartment Lid Hinge & Bolt

GM2744216

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedures

Remove the rear compartment lid. Refer to Rear Compartment Lid Replacement .
Remove the rear window trim panel. Refer to Rear Window Panel Trim Replacement (Without DB3)Rear Window Panel Trim Replacement (With DB3) .
Remove the rear compartment lid hinge spring. Refer to Rear Compartment Lid Hinge Spring Replacement .
Remove the rear compartment lid hinge strut, for the right hinge. Refer to Rear Compartment Lid Strut Replacement .

1

Rear Compartment Lid Hinge Bolt

CAUTION:

Refer to Fastener Caution

Tighten
22 N.m (16 lb ft)

2

Rear Compartment Lid Hinge
