Engine Coolant Fan Shroud Replacement (LFX)

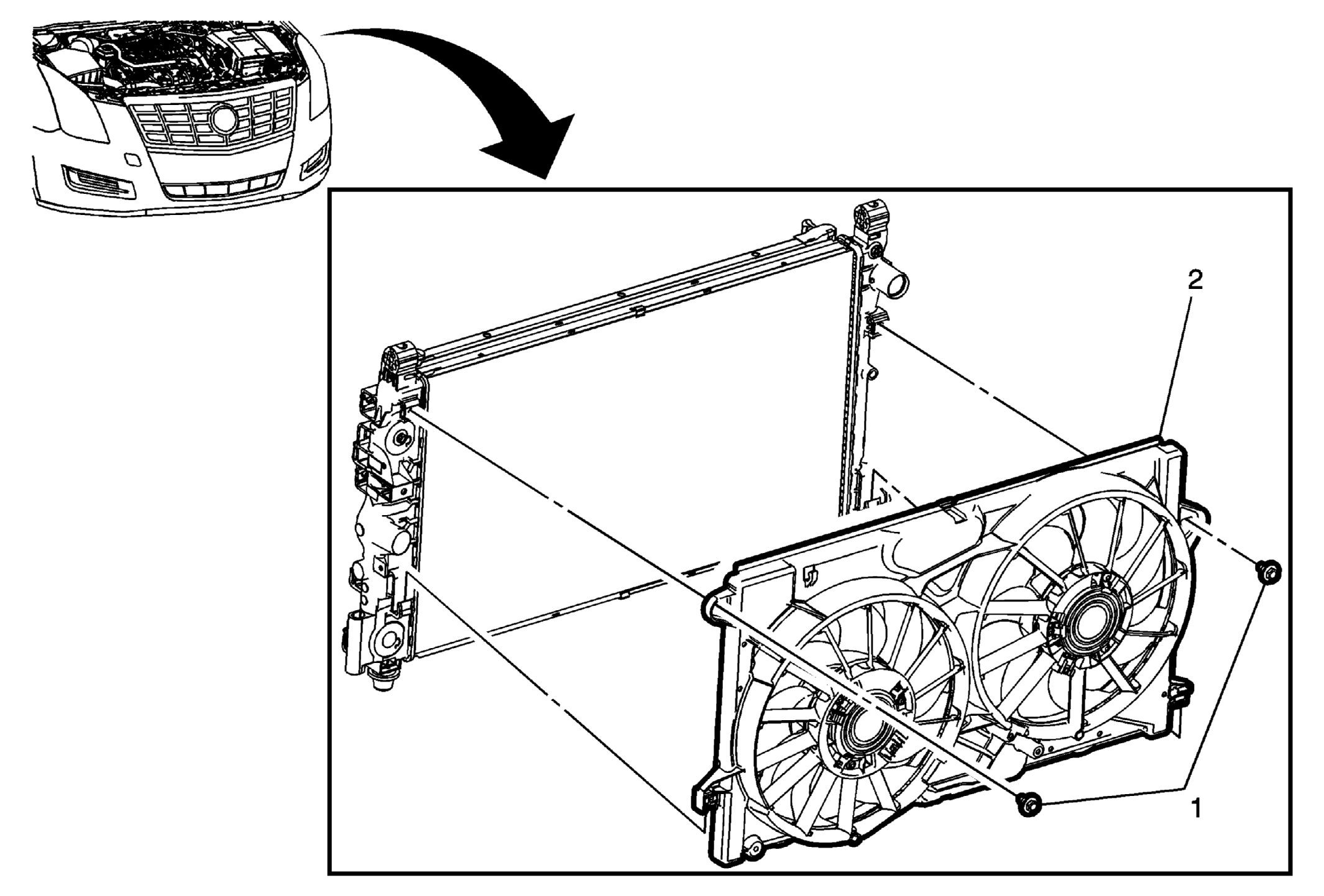

Fig 1: Engine Coolant Fan Shroud & Fasteners (LFX)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement (LFX) Remove the front compartment front sight shield. Refer to Front Compartment Front Sight Shield Replacement Remove the front end upper tie bar. Refer to Front End Upper Tie Bar Replacement (Without LF3) Disconnect the engine coolant fan motor connectors. Reposition the electrical wiring harness.
1	Engine Coolant Fan Shroud Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 6 N.m (53 lb in)
2	Engine Coolant Fan Shroud Procedure Transfer all necessary parts.

Callout

Component Name

Preliminary Procedures

Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement (LFX)
Remove the front compartment front sight shield. Refer to Front Compartment Front Sight Shield Replacement
Remove the front end upper tie bar. Refer to Front End Upper Tie Bar Replacement (Without LF3)
Disconnect the engine coolant fan motor connectors.
Reposition the electrical wiring harness.

Engine Coolant Fan Shroud Fastener (Qty: 2)

CAUTION:

Tighten
6 N.m (53 lb in)

Engine Coolant Fan Shroud
Procedure
Transfer all necessary parts.
