Front Compartment Front Sight Shield Replacement

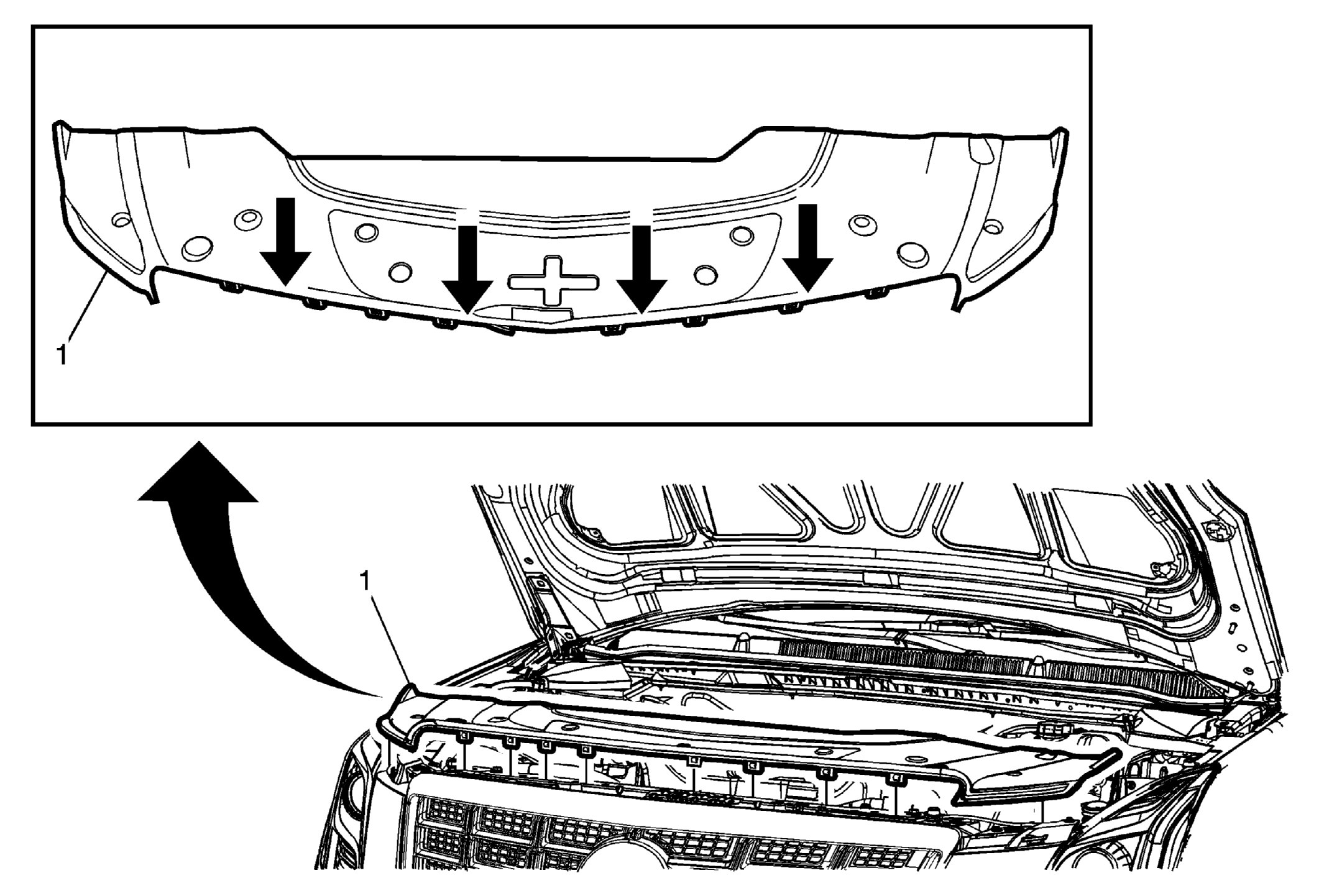

Fig 1: Front Compartment Front Sight Shield

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Compartment Front Sight Shield Procedure Gently pull the panel upward to disengage the fastener into the headlamp housing. Carefully slide a nylon wedge between the front fascia grille and the sight shield panel, right next to the molded in tab, such that half of the nylon wedge is under the sight shield and other half is exposed (arrows). Rock the nylon wedge up to release the tab from the grille slot. One by one release all the tabs. Carefully disengage the front compartment front sight shield by pulling upward in order to release all of the remaining hidden push-in retainers from the upper tie bar.

Callout

Component Name

Front Compartment Front Sight Shield

Procedure

Gently pull the panel upward to disengage the fastener into the headlamp housing.
Carefully slide a nylon wedge between the front fascia grille and the sight shield panel, right next to the molded in tab, such that half of the nylon wedge is under the sight shield and other half is exposed (arrows).
Rock the nylon wedge up to release the tab from the grille slot.
One by one release all the tabs.
Carefully disengage the front compartment front sight shield by pulling upward in order to release all of the remaining hidden push-in retainers from the upper tie bar.
