Rear Side Door Window Belt Reveal Molding Replacement

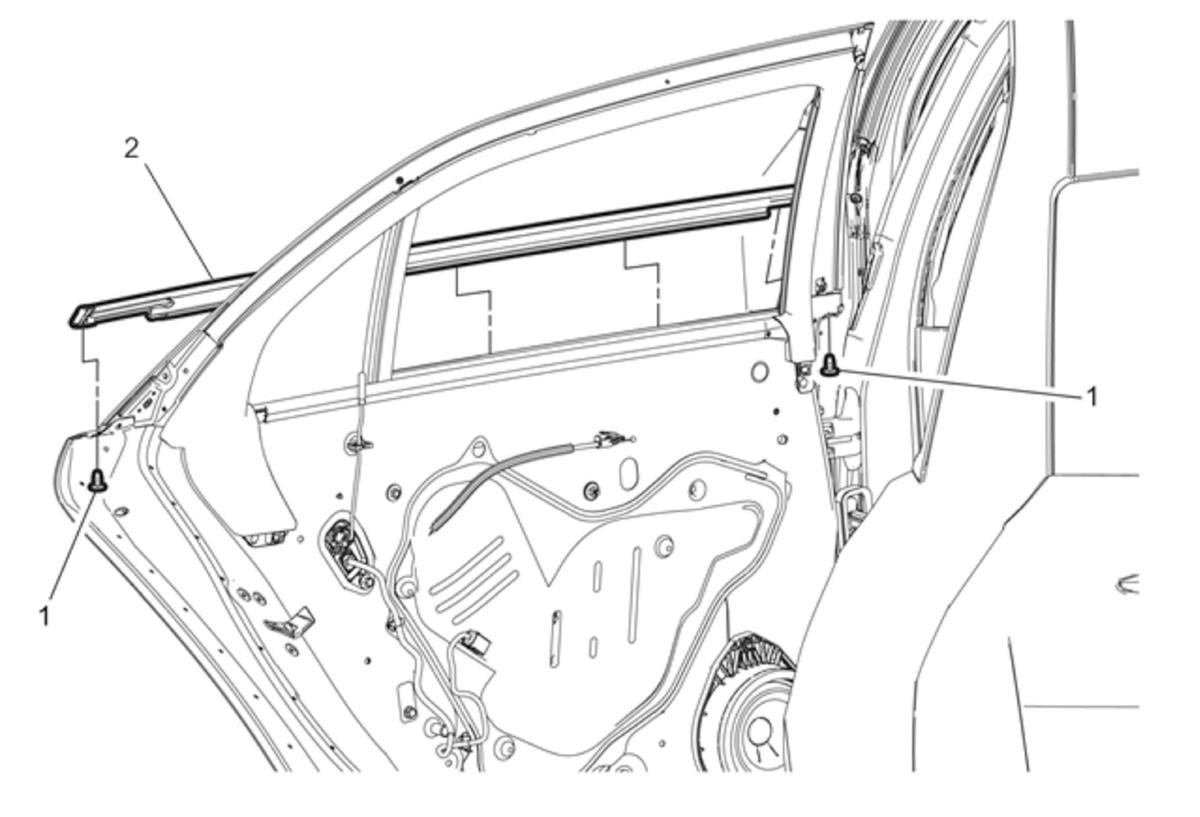

Fig 1: Rear Side Door Window Belt Reveal Molding

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Place the rear side door in the full open position. Reposition the rear side door weatherstrip-door side to access the rear side door window belt reveal rear molding screw. Refer to Rear Side Door Weatherstrip Replacement - Door Side . Reposition the rear side door lower auxiliary weatherstrip to access the rear side door window belt reveal front molding screw. Refer to Rear Side Door Lower Auxiliary Weatherstrip Replacement .
1	Rear Side Door Window Belt Reveal Molding Screw (Qty: 2) CAUTION: Refer to Fastener Caution Tighten 2.5 (22 lb in)
2	Rear Side Door Window Belt Reveal Molding Procedure Lower the front side door window to the full down position. Tape off the lower window frame to prevent damage to the door. Using a suitable tool, lift upward at the rear end of the reveal molding. Work the reveal molding down the door flange until it fully releases. Push downward on the molding until fully seated. NOTE: Inspect the door window for proper operation.

Callout

Component Name

Preliminary Procedures

Place the rear side door in the full open position.
Reposition the rear side door weatherstrip-door side to access the rear side door window belt reveal rear molding screw. Refer to Rear Side Door Weatherstrip Replacement - Door Side .
Reposition the rear side door lower auxiliary weatherstrip to access the rear side door window belt reveal front molding screw. Refer to Rear Side Door Lower Auxiliary Weatherstrip Replacement .

Rear Side Door Window Belt Reveal Molding Screw (Qty: 2)

CAUTION:

Tighten
2.5 (22 lb in)

Rear Side Door Window Belt Reveal Molding

Procedure

Lower the front side door window to the full down position.
Tape off the lower window frame to prevent damage to the door.
Using a suitable tool, lift upward at the rear end of the reveal molding. Work the reveal molding down the door flange until it fully releases.
Push downward on the molding until fully seated.

NOTE:

Inspect the door window for proper operation.
