Rear Side Door Weatherstrip Replacement - Door Side

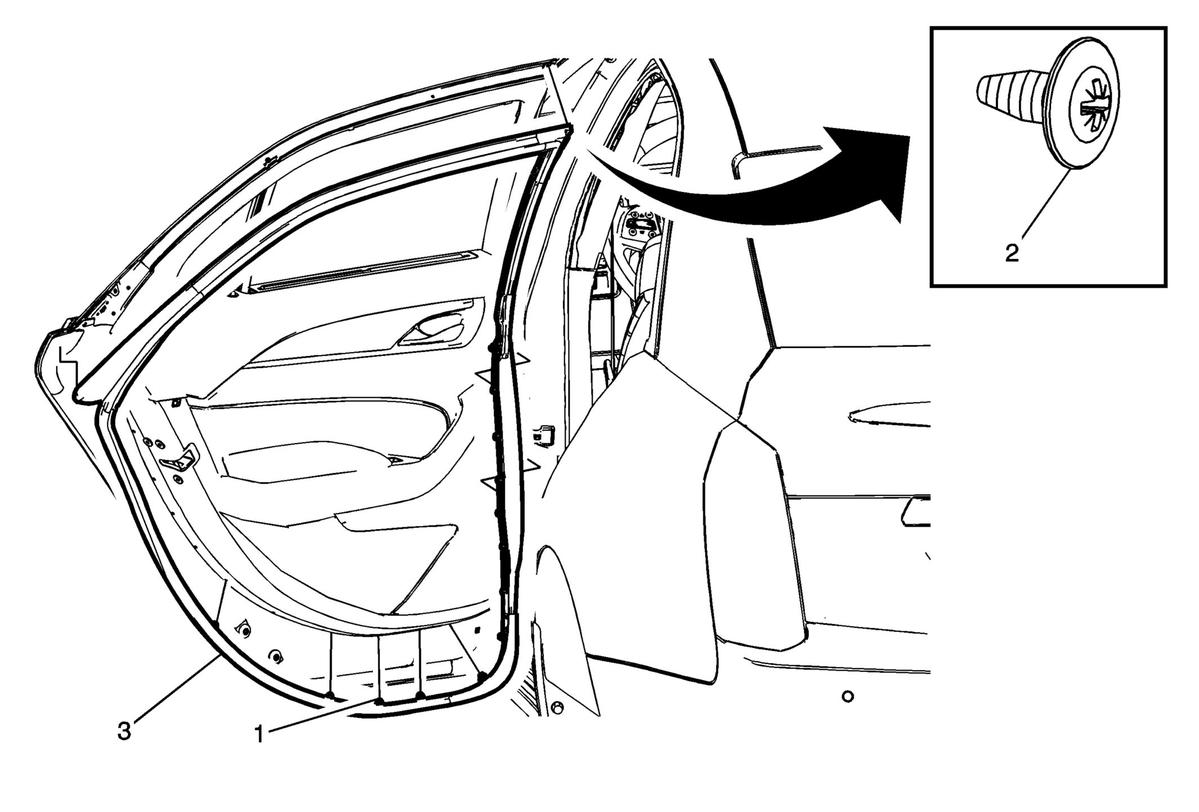

Fig 1: Rear Side Door Weatherstrip - Door Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Open the rear side door to the full open position. Remove the check link bolt from the body side only. Refer to Rear Side Door Check Link Replacement .
1	Rear Side Door Weatherstrip Retainer (Qty: 23) Procedure Using a suitable tool, release the push in pin retainers from the door.
2	Rear Side Door Weatherstrip Screw CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
3	Rear Side Door Weatherstrip to Door Side Procedure Ensure that the weatherstrip is fully seated in the upper door frame channel. NOTE: Inspect the door to ensure a proper seal after the weatherstrip has been installed.
