Rear Side Door Lower Auxiliary Weatherstrip Replacement

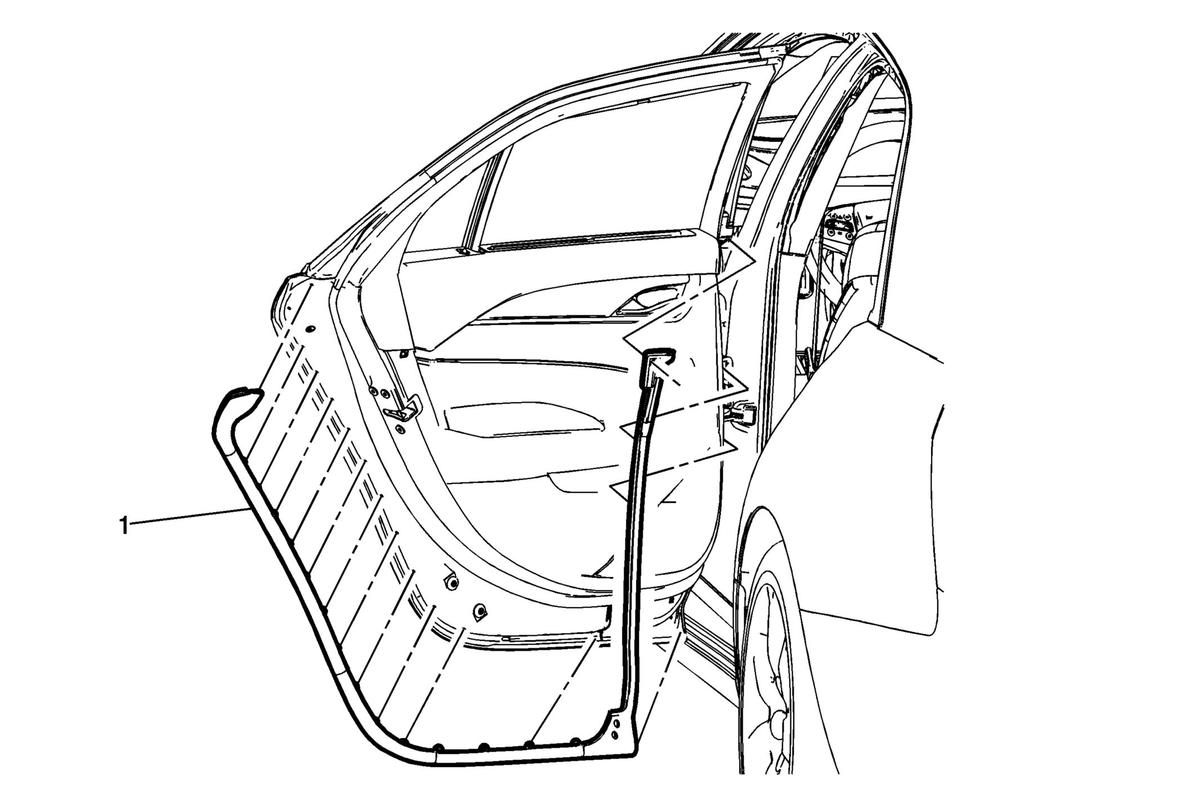

Fig 1: Rear Side Door Lower Auxiliary Weatherstrip

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Rear Side Door Lower Auxiliary Weatherstrip Procedures Open the rear side door to the full open position. Using a suitable tool, release the push in pin retainers from the door. Ensure that the weatherstrip is fully seated in the door. NOTE: Inspect the door to ensure a proper seal after the weatherstrip has been installed.

Callout

Component Name

Rear Side Door Lower Auxiliary Weatherstrip

Procedures

NOTE:

Inspect the door to ensure a proper seal after the weatherstrip has been installed.
