Rear Side Door Window Frame Front Cover Replacement

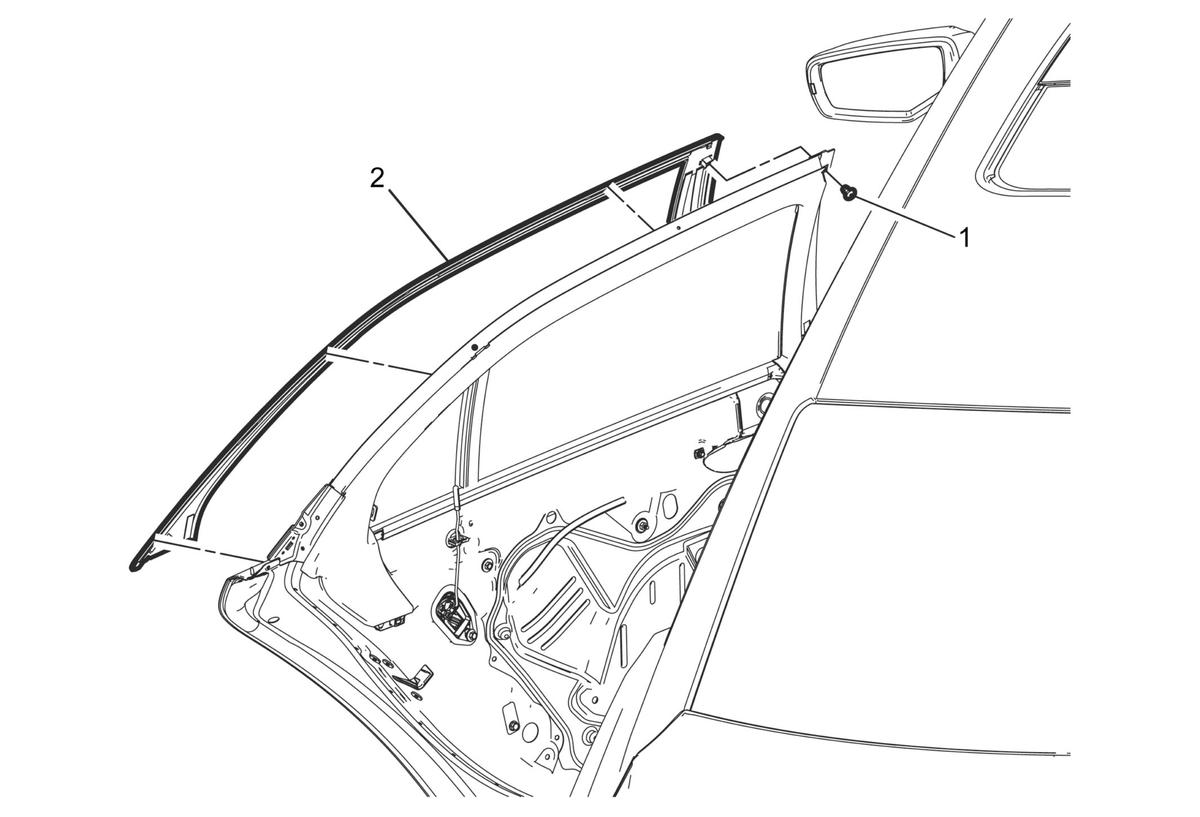

Fig 1: Rear Side Door Window Frame Front Cover

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear side door window belt reveal molding. Refer to Rear Side Door Window Belt Reveal Molding Replacement . It is only necessary to reposition the rear side door weatherstrip. Only do those steps in the procedure that will remove the weatherstrip enough to gain access to the screw. Refer to Rear Side Door Weatherstrip Replacement - Door Side .
1	Rear Side Door Window Frame Front Cover Screw CAUTION: Refer to Fastener Caution . NOTE: Use HAND TOOLS ONLY when tightening the fastener Tighten 2.5 N.m (22 lb in)
2	Rear Side Door Window Frame Front Cover Use a suitable tool, remove the frame cover from the vehicle. Use a solution of 50/50 isopropyl alcohol and water to clean the adhesive surface. Peel the protective film from the foam tape and apply the tape to the latch cover. Peel the protective film from the foam tape and insert the latch cover to the vehicle.

Callout

Component Name

Preliminary Procedures

Remove the rear side door window belt reveal molding. Refer to Rear Side Door Window Belt Reveal Molding Replacement .
It is only necessary to reposition the rear side door weatherstrip. Only do those steps in the procedure that will remove the weatherstrip enough to gain access to the screw. Refer to Rear Side Door Weatherstrip Replacement - Door Side .

Rear Side Door Window Frame Front Cover Screw

CAUTION:

NOTE:

Use HAND TOOLS ONLY when tightening the fastener

Tighten
2.5 N.m (22 lb in)

Rear Side Door Window Frame Front Cover

Use a suitable tool, remove the frame cover from the vehicle.
Use a solution of 50/50 isopropyl alcohol and water to clean the adhesive surface.
Peel the protective film from the foam tape and apply the tape to the latch cover.
Peel the protective film from the foam tape and insert the latch cover to the vehicle.
