Rear Side Door Check Link Replacement

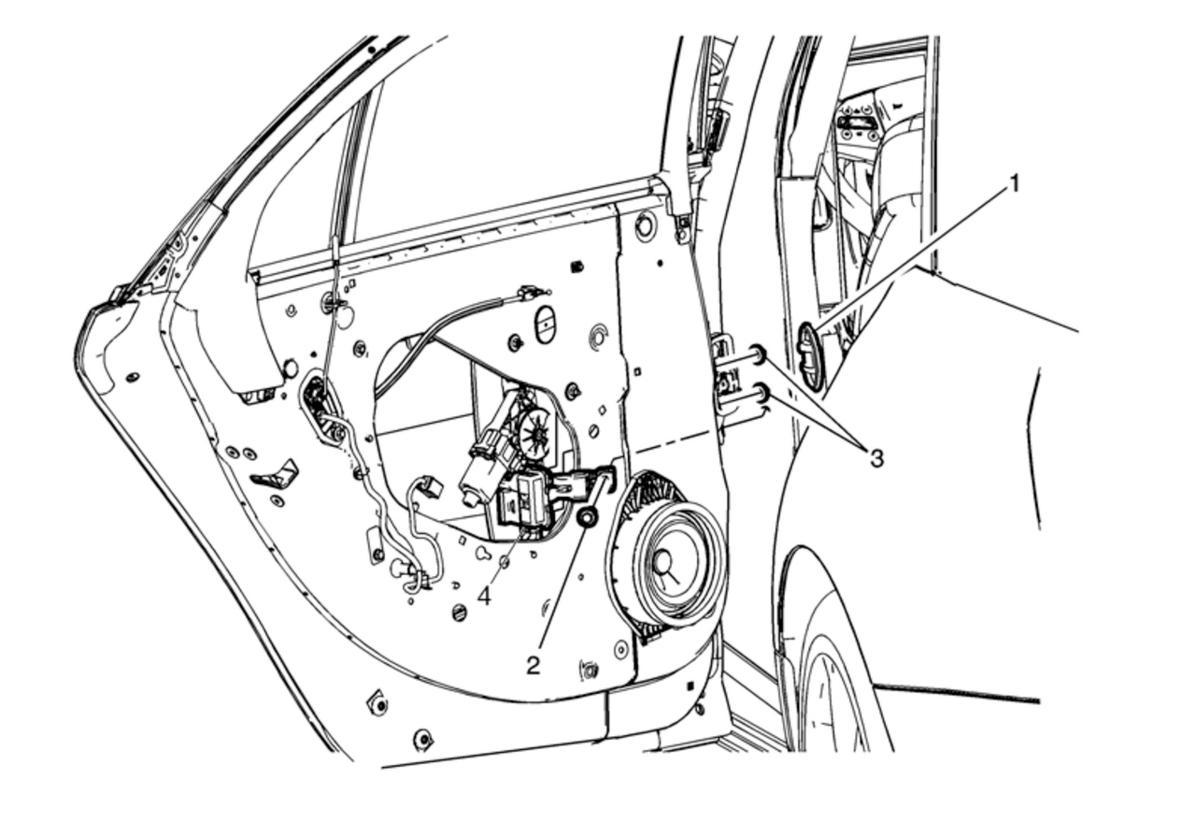

Fig 1: Rear Side Door Check Link

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Open the rear side door to the full open position. Remove the rear side door trim panel. Refer to Rear Side Door Trim Replacement . Remove the rear side radio speaker. Refer to Radio Rear Side Door Speaker Replacement .
1	Rear Side Door Check Link Grommet
2	Rear Side Door Check Link Bolt CAUTION: Refer to Fastener Caution . Procedure Slide rear side door check link cover away from frame. Tighten 32 N.m (24 lb ft)
3	Rear Side Door Check Link Nut (Qty: 2) Tighten 11.5 N.m (9 lb ft)
4	Rear Side Door Check Link NOTE: Inspect the door for proper operation before installing the door trim.
