Radio Rear Side Door Speaker Replacement

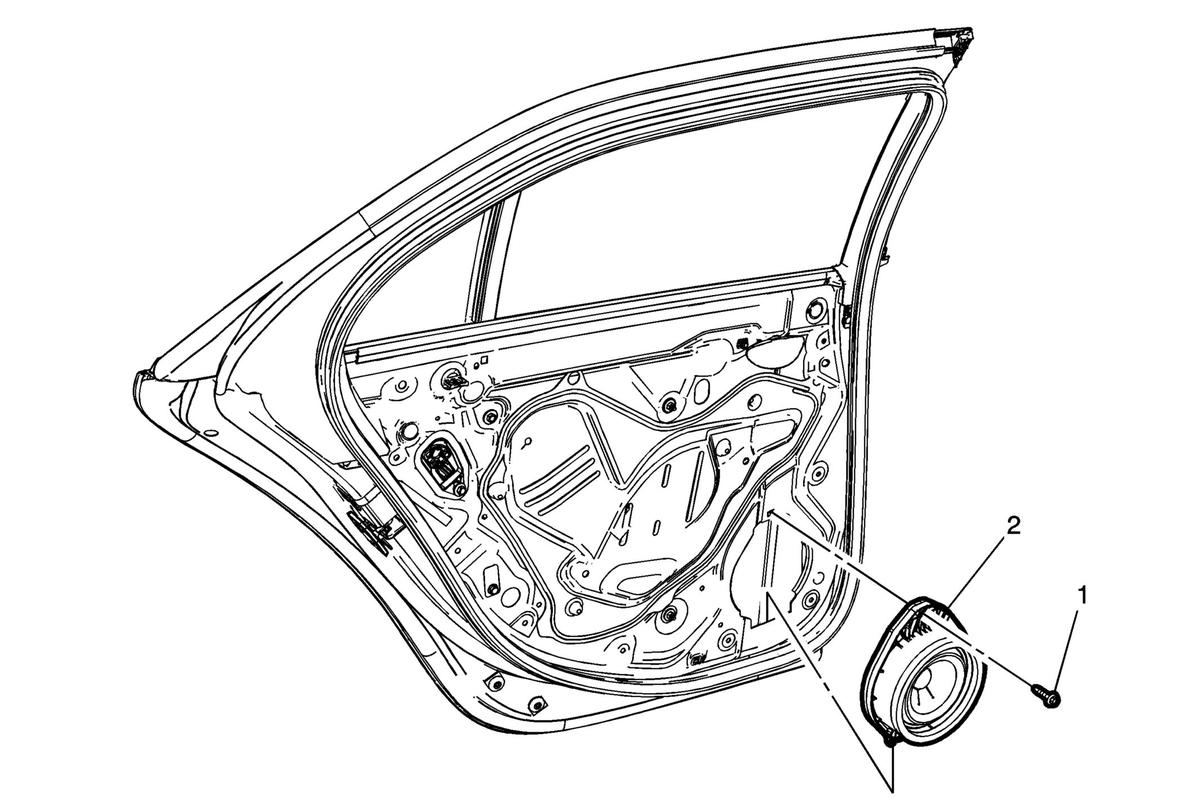

Fig 1: Radio Rear Side Door Speaker

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear side door trim. Refer to Rear Side Door Trim Replacement .
1	Radio Rear Side Door Speaker Fastener CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Radio Rear Side Door Speaker Procedure Release the spring clip retaining the speaker to the door. Disconnect the electrical connector. Unclip the wire harness retainers from the speaker.

Callout

Component Name

Preliminary Procedure
Remove the rear side door trim. Refer to Rear Side Door Trim Replacement .

Radio Rear Side Door Speaker Fastener

CAUTION:

Tighten
2.5 N.m (22 lb in)

Radio Rear Side Door Speaker

Procedure
