Rear Side Door Trim Replacement

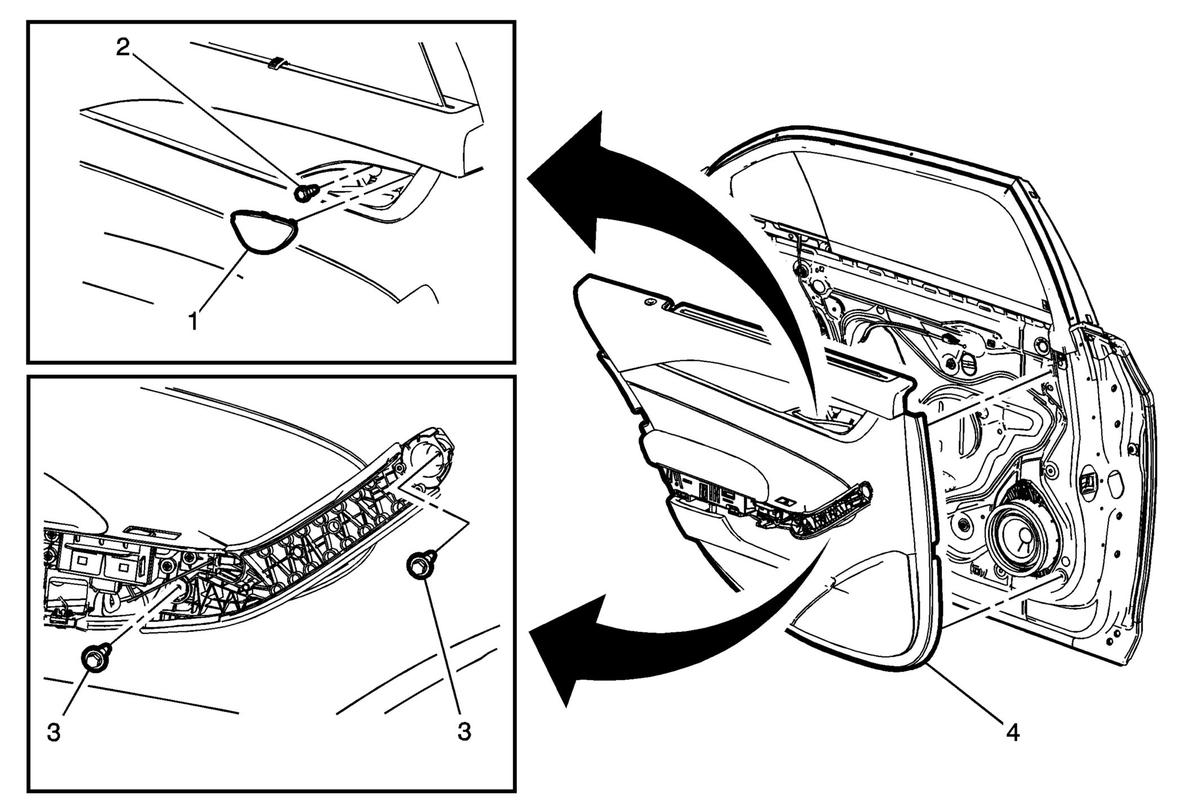

Fig 1: Rear Side Door Trim

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear side door armrest cover trim. Refer to Rear Side Door Armrest Cover Trim Replacement .
1	Rear Side Door Inside Handle Bolt Cap NOTE: Use a suitable tool, place the tool between the notch located at the rear of the door handle cap and the door handle. Turn the suitable tool clockwise releasing the door handle cap, exposing the handle fastener.
2	Rear Side Door Inside Handle Fastener CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
3	Rear Side Door Pull Handle Fastener (Qty: 2) Tighten 2.5 N.m (22 lb in)
4	Rear Side Door Trim Assembly Procedure Use the appropriate plastic trim tool to aid in the removal of the door trim. Remove the door trim panel by pulling outward at the top of the trim panel to disengage the upper retainers. Replace the door trim retainers as needed. Pull upwards on the door lock retainer cable to disengage. Disconnect the electrical connector. When re-installing the door trim panel, install new metal belt line clips.
