Hood Primary Latch Release Cable Replacement

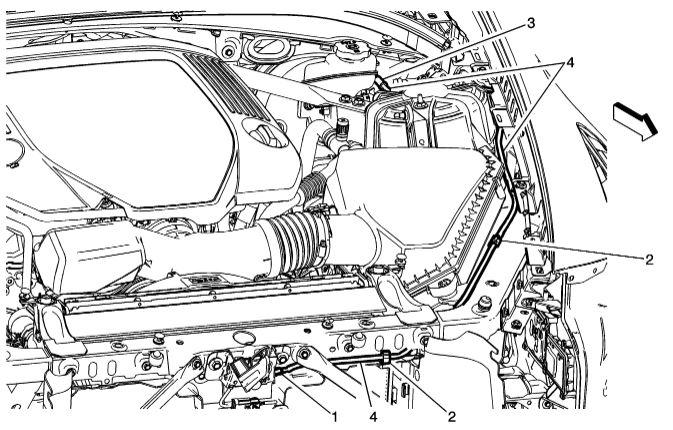

Fig 1: Hood Primary Latch Release Cable

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front bumper fascia center support. Refer to Front Bumper Fascia Center Support Replacement (Upper)Front Bumper Fascia Center Support Replacement (Lower) . Remove the left side instrument panel lower trim panel insulator. Refer to Instrument Panel Lower Trim Panel Insulator Replacement - Left Side Remove the plenum upper panel hole plug.
1	Hood Primary Latch Cable Procedure Disconnect the hood primary latch release cable from the primary hood latch.
2	Hood Primary Latch Release Cable Retainer Procedure Disconnect the hood primary latch release cable from the hood primary latch release cable retainer.
3	Hood Primary Latch Release Cable Grommet
4	Hood Primary Latch Release Cable Procedure Release the cable from the hood primary latch release cable handle.
