Front Bumper Fascia Center Support Replacement (Upper)

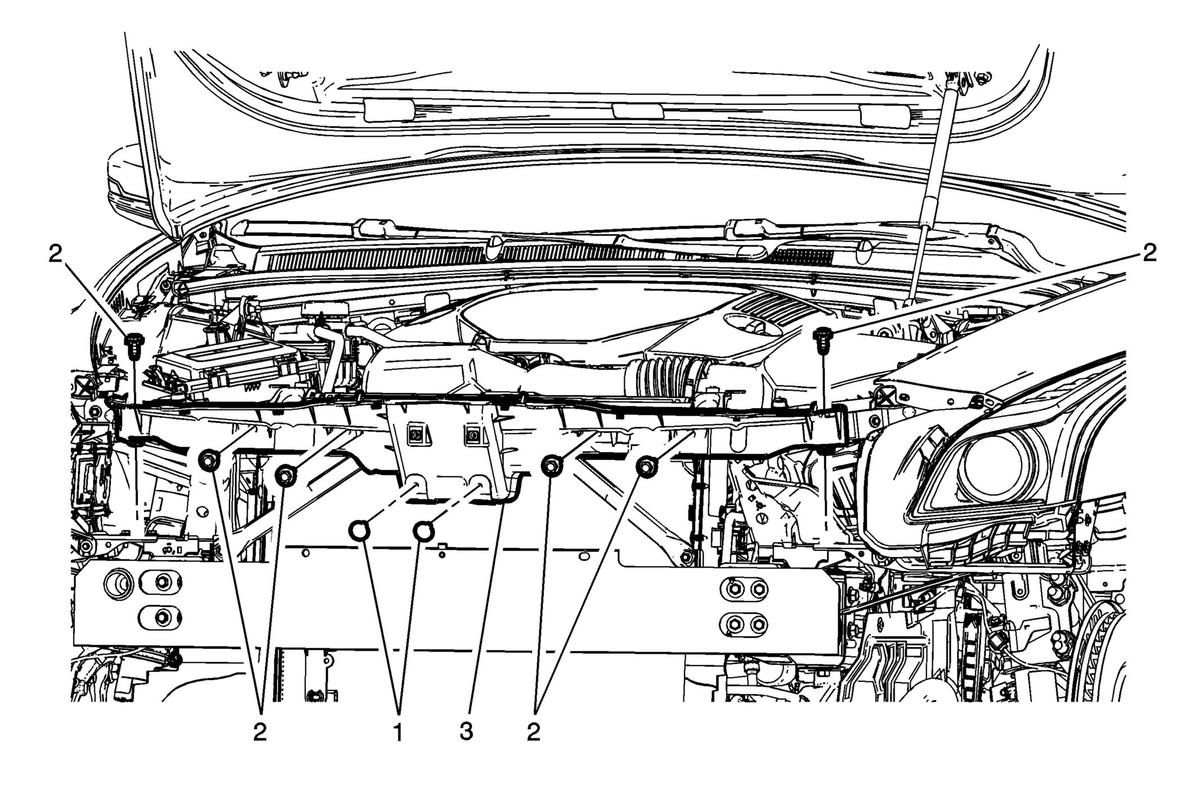

Fig 1: Front Bumper Fascia Center Support (Upper)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (CTS) Front Bumper Fascia Replacement (CTS-V) . Remove the front bumper fascia center support lower. Front Bumper Fascia Center Support Replacement (Lower) Remove the forward range module if equipped. Refer to Forward Range Radar Module Replacement
1	Radiator Air Upper Baffle Retainer (Qty: 2)
2	Front Bumper Fascia Center Support Bolt - Upper (Qty: 6) CAUTION: Refer to Fastener Caution . Tighten 9 N.m (80 lb in)
3	Front Bumper Fascia Center Support Procedure Disconnect the electrical connector retainer for the Hood Primary and Secondary Latch.
