Front Bumper Fascia Center Support Replacement (Lower)

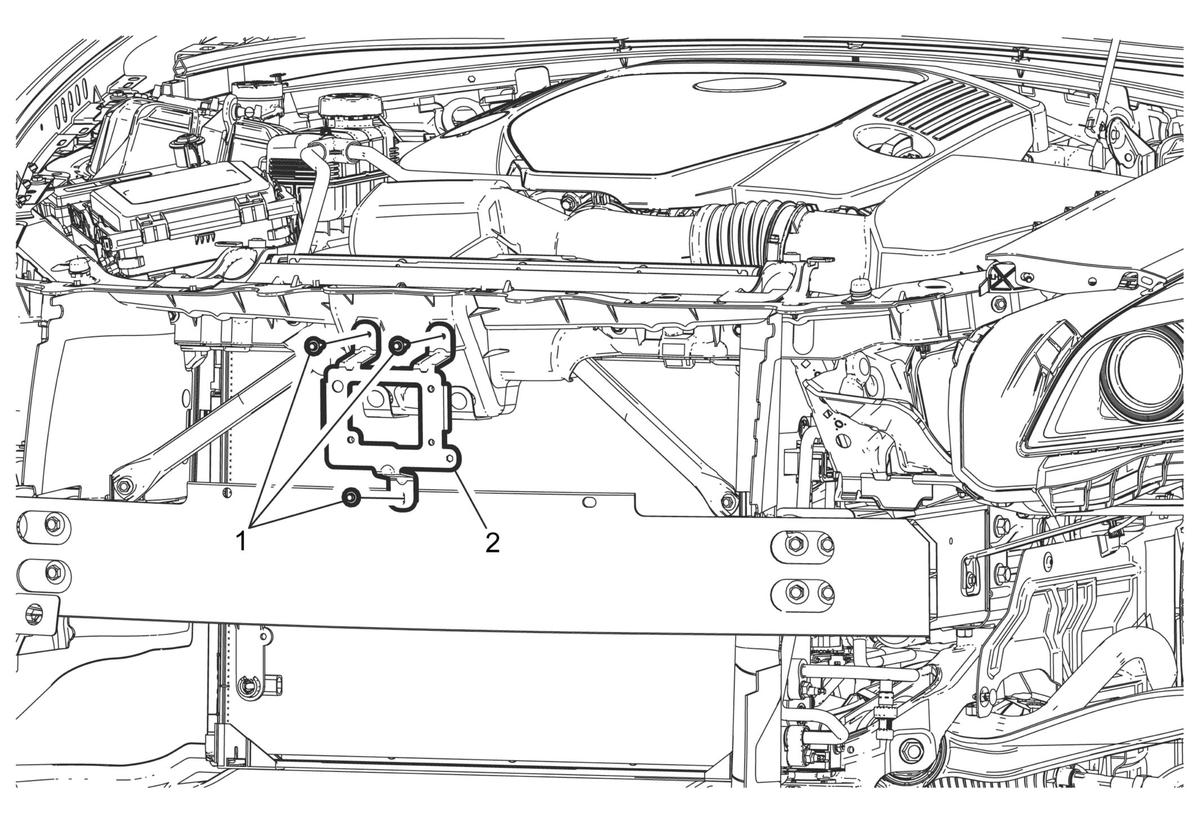

Fig 1: Front Bumper Fascia Center Support (Lower)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the front bumper fascia. Refer to Front Bumper Fascia Replacement (CTS) Front Bumper Fascia Replacement (CTS-V) . Remove the forward range module if equipped. Refer to Forward Range Radar Module Replacement
1	Front Bumper Fascia Center Support Bolt - Lower (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Front Bumper Fascia Center Support

Callout

Component Name

Preliminary Procedure

Front Bumper Fascia Center Support Bolt - Lower (Qty: 3)

CAUTION:

Tighten
2.5 N.m (22 lb in)

Front Bumper Fascia Center Support
