Hood Hinge Replacement

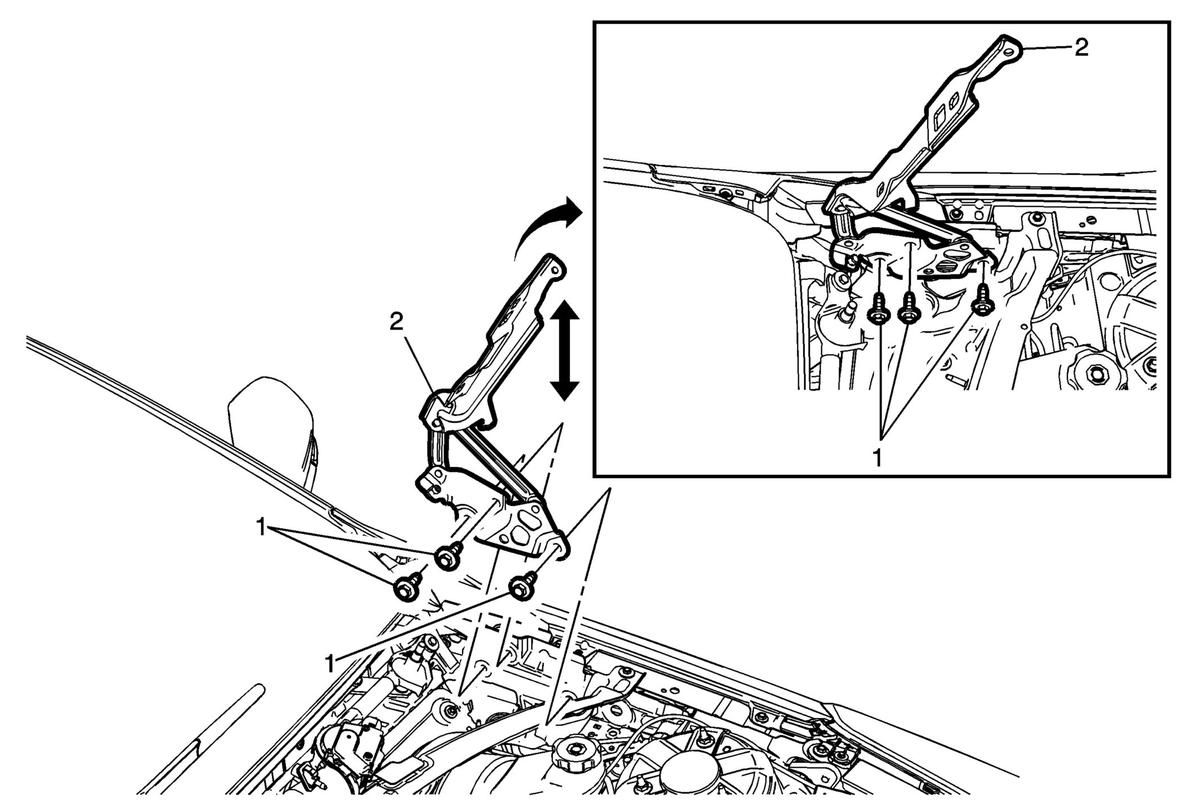

Fig 1: Hood Hinge

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the hood. Refer to Hood Replacement (CTS) Hood Replacement (CTS-V) . Remove the air inlet grille panel. Refer to Air Inlet Grille Panel Replacement . Remove the left and right hand plenum side panel. Refer to Plenum Side Panel Replacement - Left Side , Plenum Side Panel Replacement - Right Side
1	Hood Hinge Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 22 N.m (16 lb ft)
2	Hood Hinge Procedure Adjust the hood and hinge if needed. Refer to Hood Adjustment (CTS) Hood Adjustment (CTS-V) .

Callout

Component Name

Preliminary Procedures

Hood Hinge Bolt (Qty: 3)

CAUTION:

Tighten
22 N.m (16 lb ft)

Hood Hinge
Procedure
Adjust the hood and hinge if needed. Refer to Hood Adjustment (CTS) Hood Adjustment (CTS-V) .
