Hood Replacement (CTS)

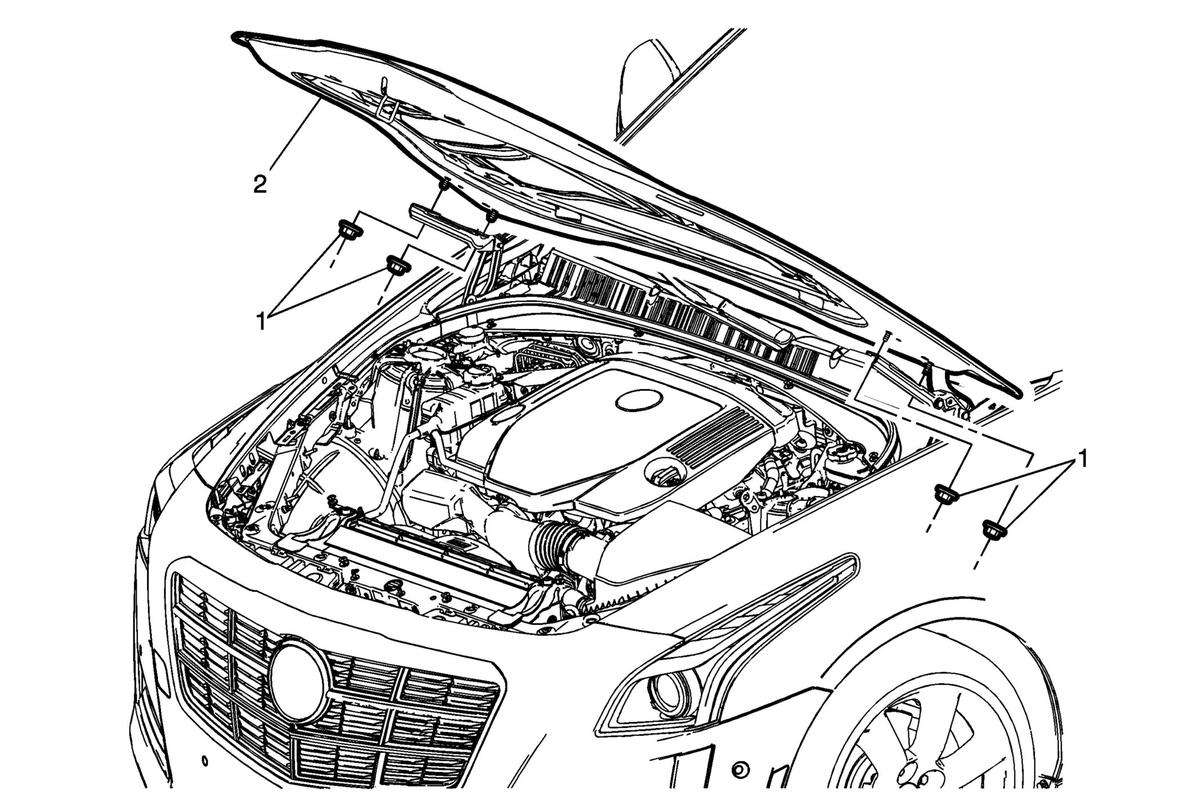

Fig 1: Hood (CTS)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Disconnect the hood struts from the hood. Refer to Hood Strut Replacement (CTS)
1	Hood Hinge Nut (Qty: 4) CAUTION: Refer to Fastener Caution . Procedure Mark the hood or hinge position in order to aid in hood installation. Tighten 22 N.m (16 lb ft)
2	Hood Procedure Remove the hood from the vehicle with the aid of an assistant. Transfer parts as needed. Adjust the hood if needed. Refer to Hood Adjustment (CTS) .

Callout

Component Name

Preliminary Procedure
Disconnect the hood struts from the hood. Refer to Hood Strut Replacement (CTS)

Hood Hinge Nut (Qty: 4)

CAUTION:

Procedure
Mark the hood or hinge position in order to aid in hood installation.
Tighten
22 N.m (16 lb ft)

Hood

Procedure
