Front Side Door Front Auxiliary Weatherstrip Replacement

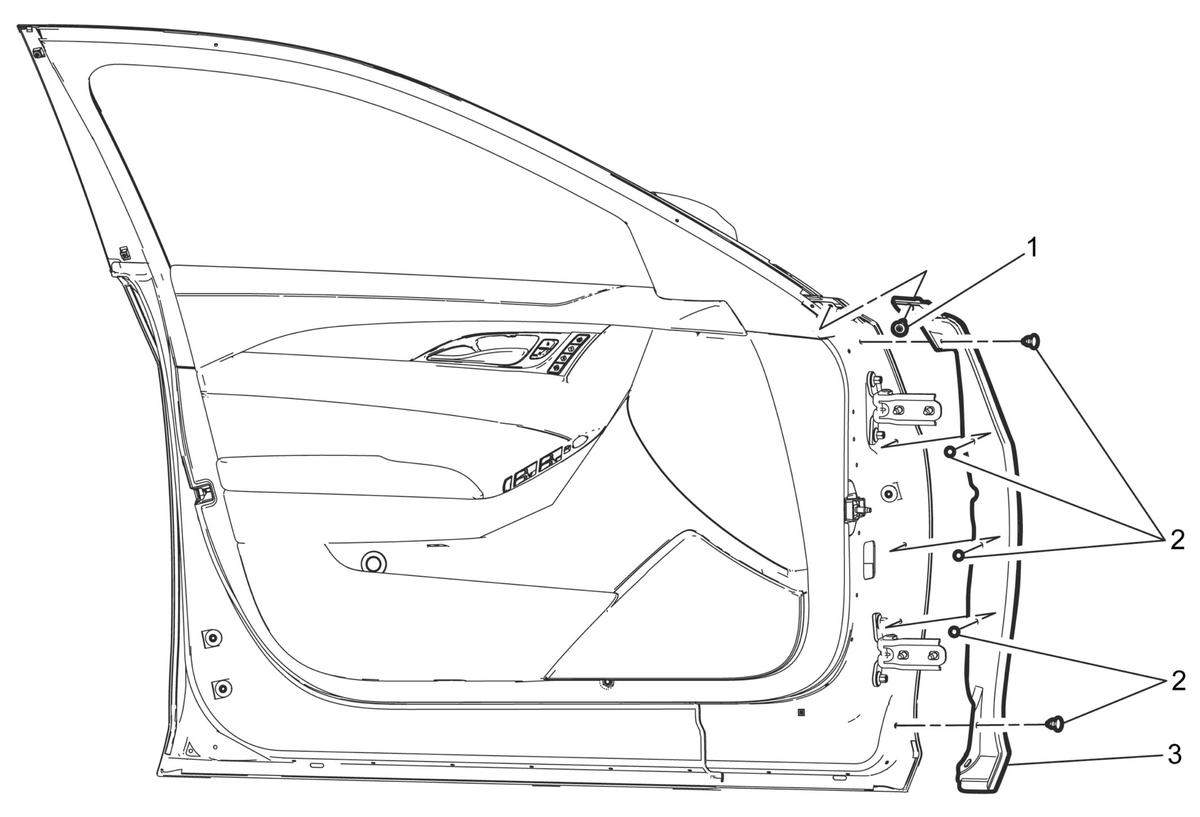

Fig 1: Front Side Door Front Auxiliary Weatherstrip

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Open front side door to full open position. Reposition front side door weatherstrip to door in the area of auxiliary weatherstrip to access upper auxiliary retainer. Refer to Front Side Door Weatherstrip Replacement - Door Side . Remove 2 front side door lower auxiliary weatherstrip retainers at the front edge of lower auxiliary weatherstrip and reposition lower auxiliary weatherstrip to access front side door front auxiliary weatherstrip retainer. Refer to Front Side Door Lower Auxiliary Weatherstrip Replacement .
1	Front Side Door Window Belt Reveal Molding Fastener CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in).
2	Front Side Door Front Auxiliary Weatherstrip Retainer (Qty: 5) Procedure Using a suitable tool, remove retainers from around doors edge.
3	Front Side Door Front Auxiliary Weatherstrip
