Front Side Door Weatherstrip Replacement - Door Side

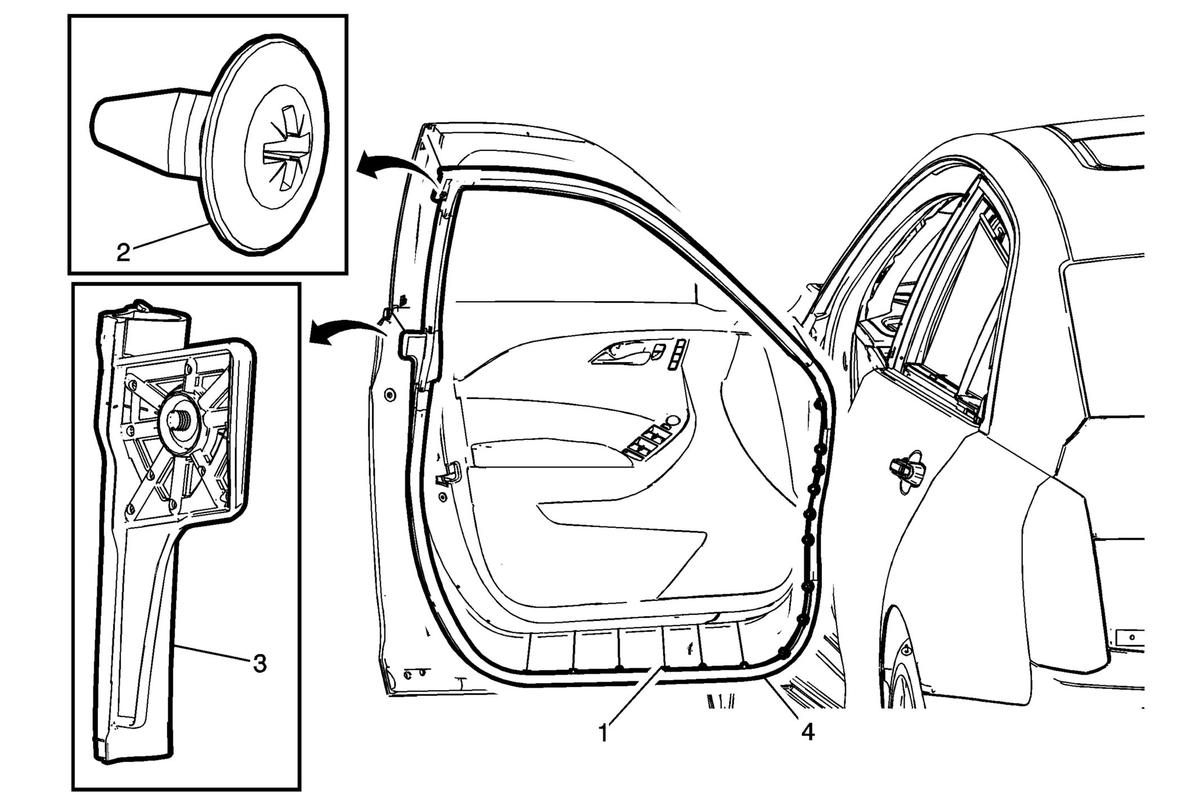

Fig 1: Front Side Door Weatherstrip - Door Side

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Open the front side door to the full open position. Remove the check link bolt from the body side only. Refer to Front Side Door Check Link Replacement .
1	Front Side Door Weatherstrip Retainer (Qty: 24) Procedure Using a suitable tool, release the push pin retainers from around the door.
2	Front Side Door Weatherstrip Screw CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
3	Front Side Door Weatherstrip Retainer
4	Front Side Door Weatherstrip to Door Side Procedure Ensure that the weatherstrip is fully seated in the upper door frame channel. NOTE: Inspect the door to ensure a proper seal after the weatherstrip has been installed.
