Front Side Door Lower Auxiliary Weatherstrip Replacement

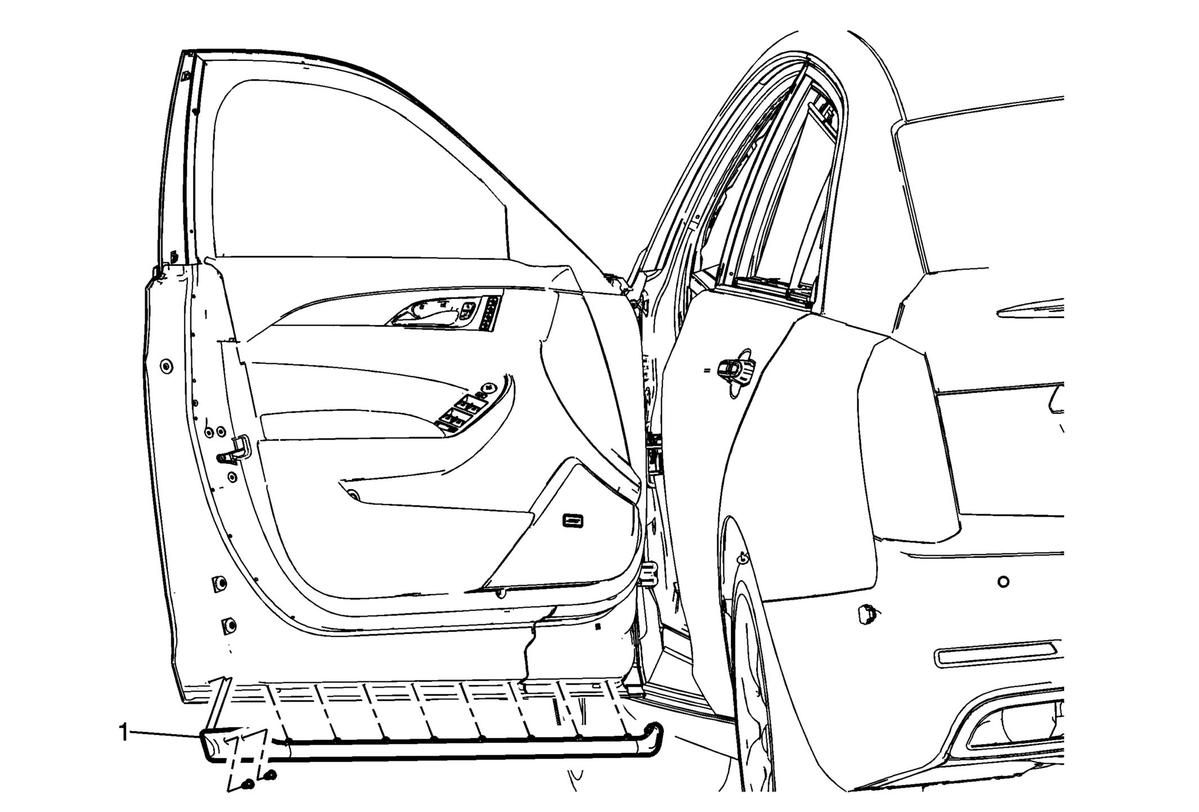

Fig 1: Front Side Door Lower Auxiliary Weatherstrip

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Side Door Lower Auxiliary Weatherstrip Procedure Open the front side door to the full open position. Using the appropriate tool, remove the push pin retainers. Pull the front side door lower auxiliary weatherstrip from the door. NOTE: Inspect the door for a proper seal after the weatherstrip has been replasced.

Callout

Component Name

Front Side Door Lower Auxiliary Weatherstrip

Procedure

NOTE:

Inspect the door for a proper seal after the weatherstrip has been replasced.
