Rear Compartment Front Trim Replacement (Without HP9)

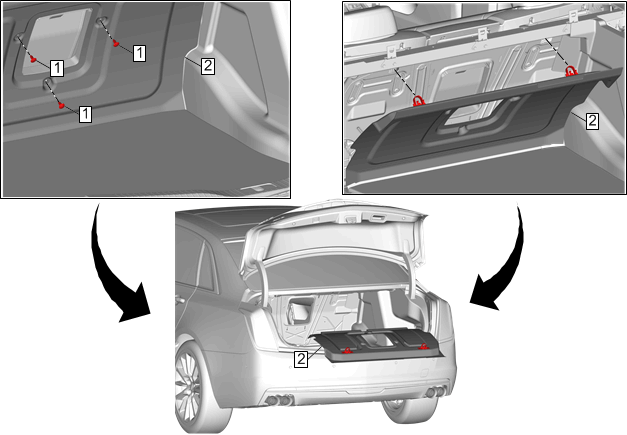

Fig 1: Rear Compartment Front Trim (Without HP9)
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Rear Compartment Front Trim Retainer [3x]
Procedure
Use a flat bladed plastic trim tool.
2
Rear Compartment Front Trim
