Driver or Passenger Seat Inner Adjuster Rear Finish Cover Replacement (W2E)

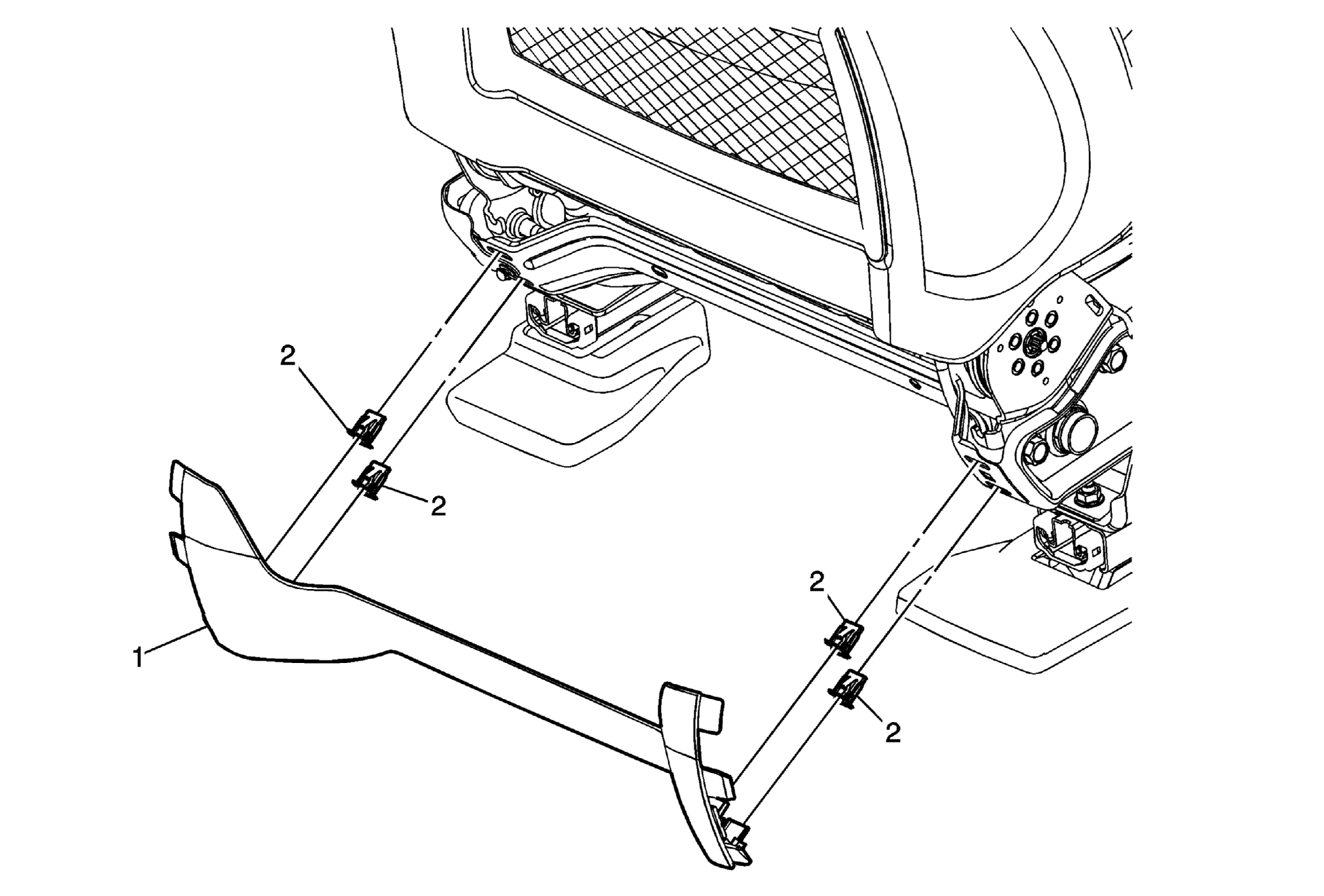

Fig 1: Identifying Driver Or Passenger Seat Inner Adjuster Rear Finish Cover (W2E)
GM2087636Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Remove the front seat. Refer to Front Seat Removal and Installation - Bucket (W2E) .
  2. Remove the front seat outer adjuster front finish cover. Refer to Driver or Passenger Seat Outer Adjuster Front Finish Cover Replacement (W2E) .
  3. Remove the front seat adjuster switch bezel. Refer to Front Seat Adjuster Switch Bezel Replacement (W2E) .
  4. Remove the front seat inner recliner finish cover. Refer to Driver or Passenger Seat Inner Recliner Finish Cover Replacement (W2E) .
1 Front Seat Inner Adjuster Rear Finish Cover
Procedure
Pull the cover rearward to disengage the retainer clips.
2 Front Seat Inner Adjuster Rear Finish Cover Retainers (Qty 4)
