Driver or Passenger Seat Outer Adjuster Front Finish Cover Replacement (W2E)

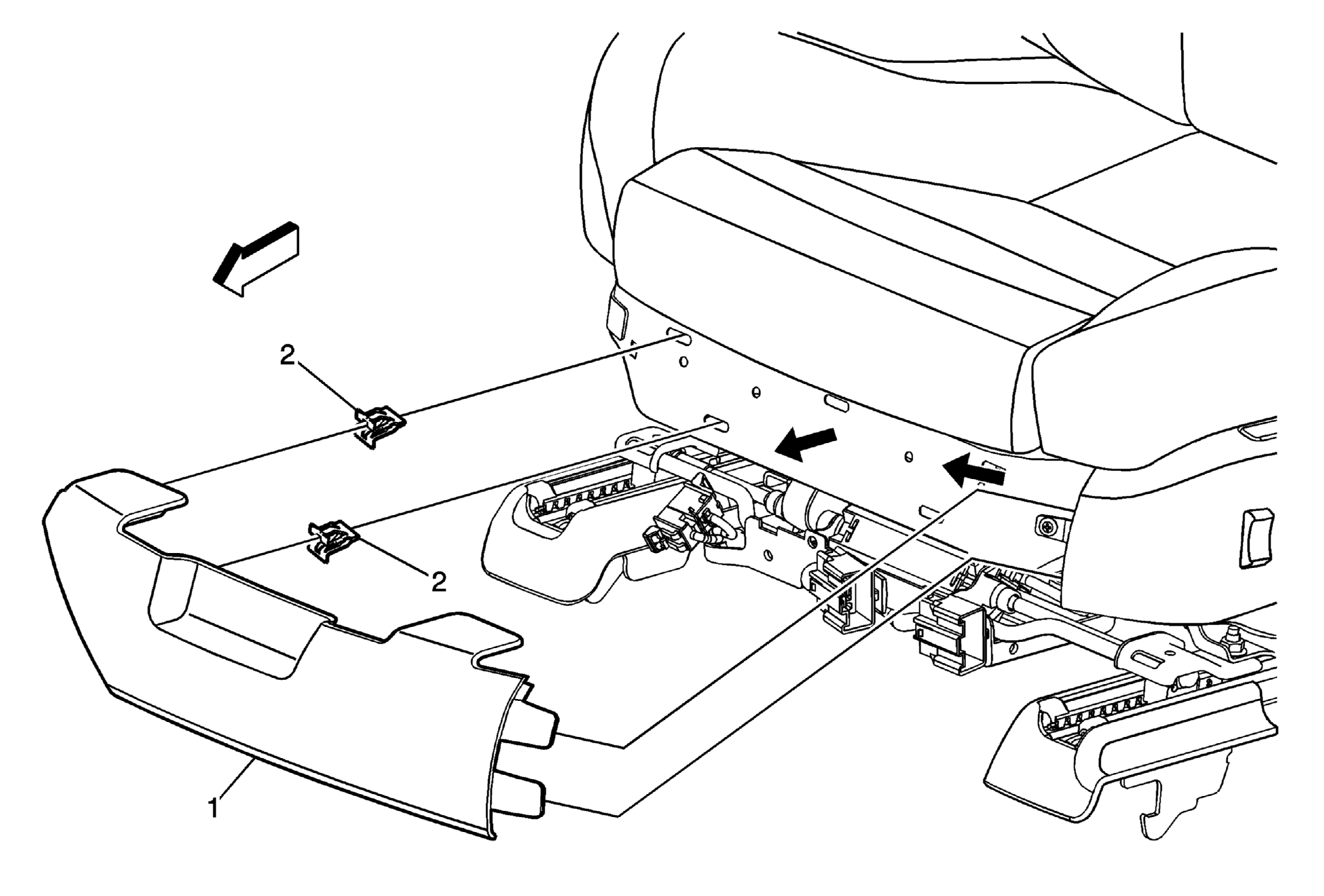

Fig 1: Identifying Driver Or Passenger Seat Outer Adjuster Front Finish Cover (W2E)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Seat Outer Adjuster Front Finish Cover Procedure Pull the inner side of the cover forward first to disengage the retainer clips. Slide the tabs out of the seat adjuster switch bezel.
2	Front Seat Outer Adjuster Front Finish Cover Retainers (Qty: 2)

Callout

Component Name

Front Seat Outer Adjuster Front Finish Cover

Procedure

Front Seat Outer Adjuster Front Finish Cover Retainers (Qty: 2)
