Rear Compartment Lid Replacement (Coupe)

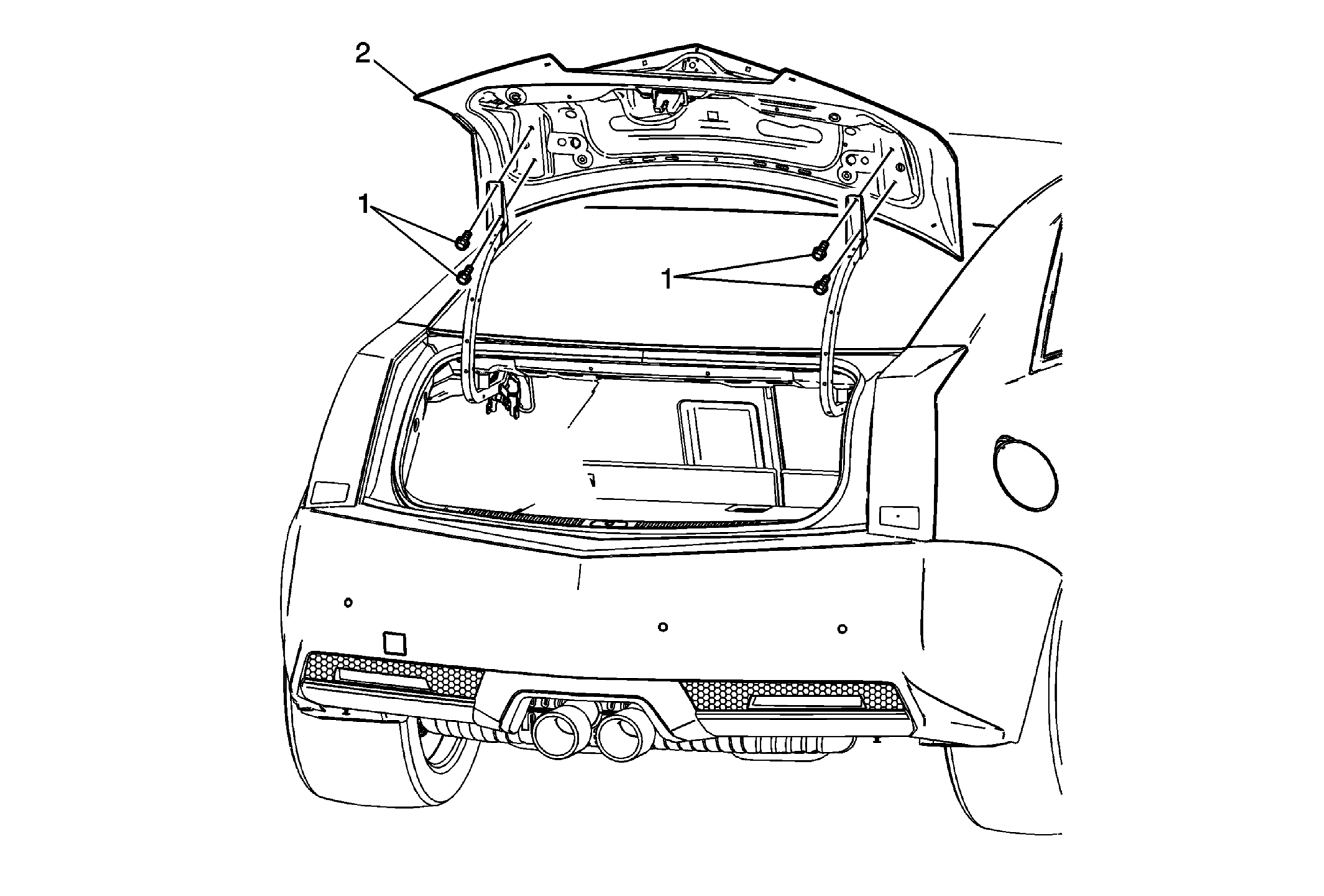

Fig 1: Rear Compartment Lid & Bolts (Coupe)

GM2328335

Courtesy of GENERAL MOTORS COMPANY

Callout

Component Name

Preliminary Procedures

Remove the rear compartment lid inner trim panel. Refer to Rear Compartment Lid Inner Panel Trim Replacement (Coupe) .
Remove the rear compartment lid hinge covers. Refer to Rear Compartment Lid Hinge Cover Replacement (Coupe) .

1

Rear Compartment Lid Bolt (Qty: 4)

CAUTION:

Refer to Fastener Caution .

Tighten
25 N.m (19 lb ft)

2

Rear Compartment Lid

Procedure

Disconnect the electrical connector.
Adjust the rear compartment lid as needed. Refer to Rear Compartment Lid Adjustment .
Transfer components as necessary.
