Rear Compartment Lid Inner Panel Trim Replacement (Coupe)

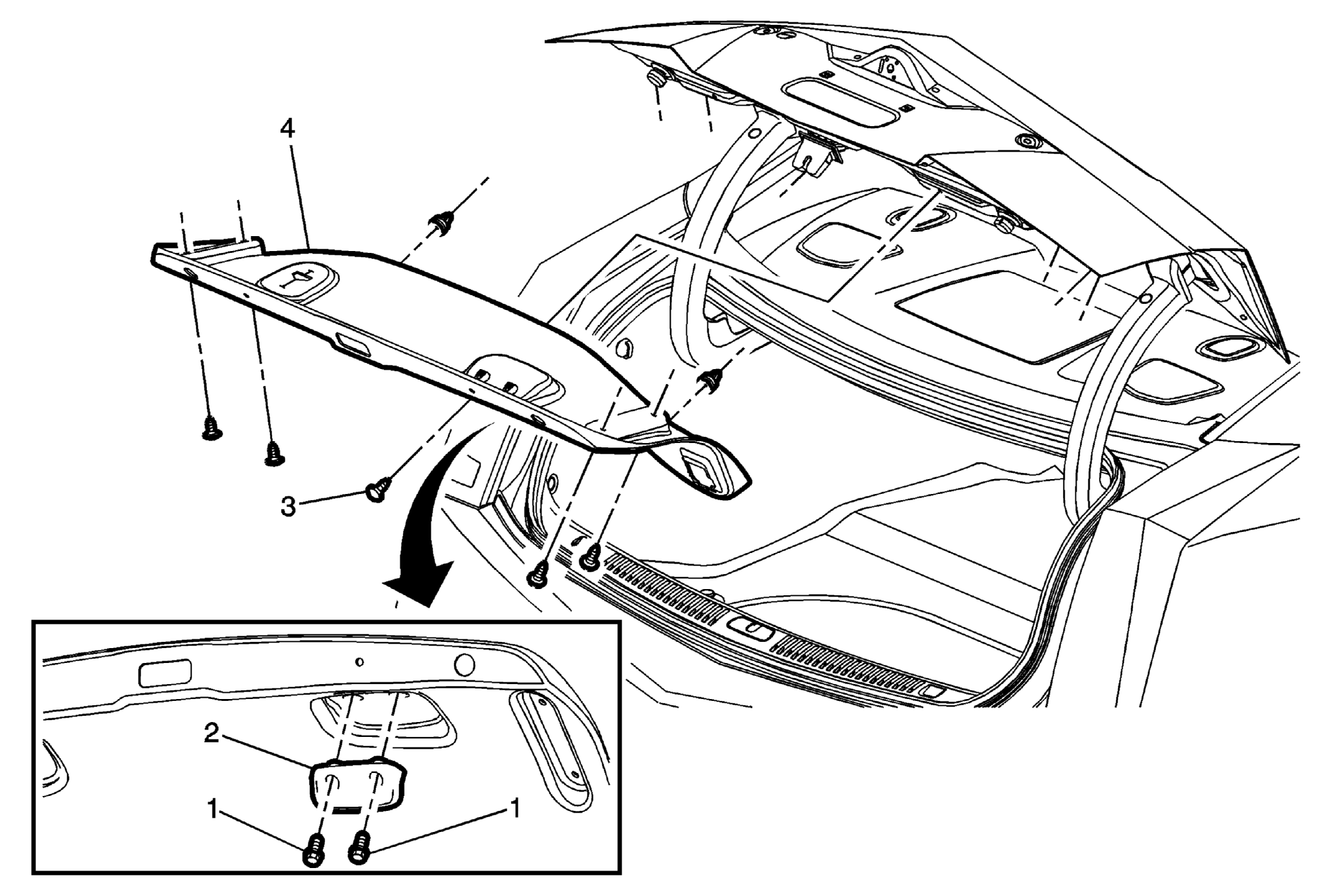

Fig 1: Rear Compartment Lid Inner Panel Trim (Coupe)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the rear compartment lid latch cover. Remove the rear compartment lid outer bumpers.
1	Liftgate Inside Assist Handle Fastener (Qty: 2) CAUTION: Refer to Fastener Caution .
2	Rear Compartment Lid Inside Handle Assembly
3	Rear Compartment Lid Inner Panel Trim Retainer (Qty: 5) Procedure Use a trim removal tool to aid in the removal of the rear compartment trim panel. For installation, position the trim to the decklid and secure with the middle retainer first. Remove the middle retainer last for removal.
4	Rear Compartment Lid Inner Panel Trim
