Rear Compartment Lid Hinge Cover Replacement (Coupe)

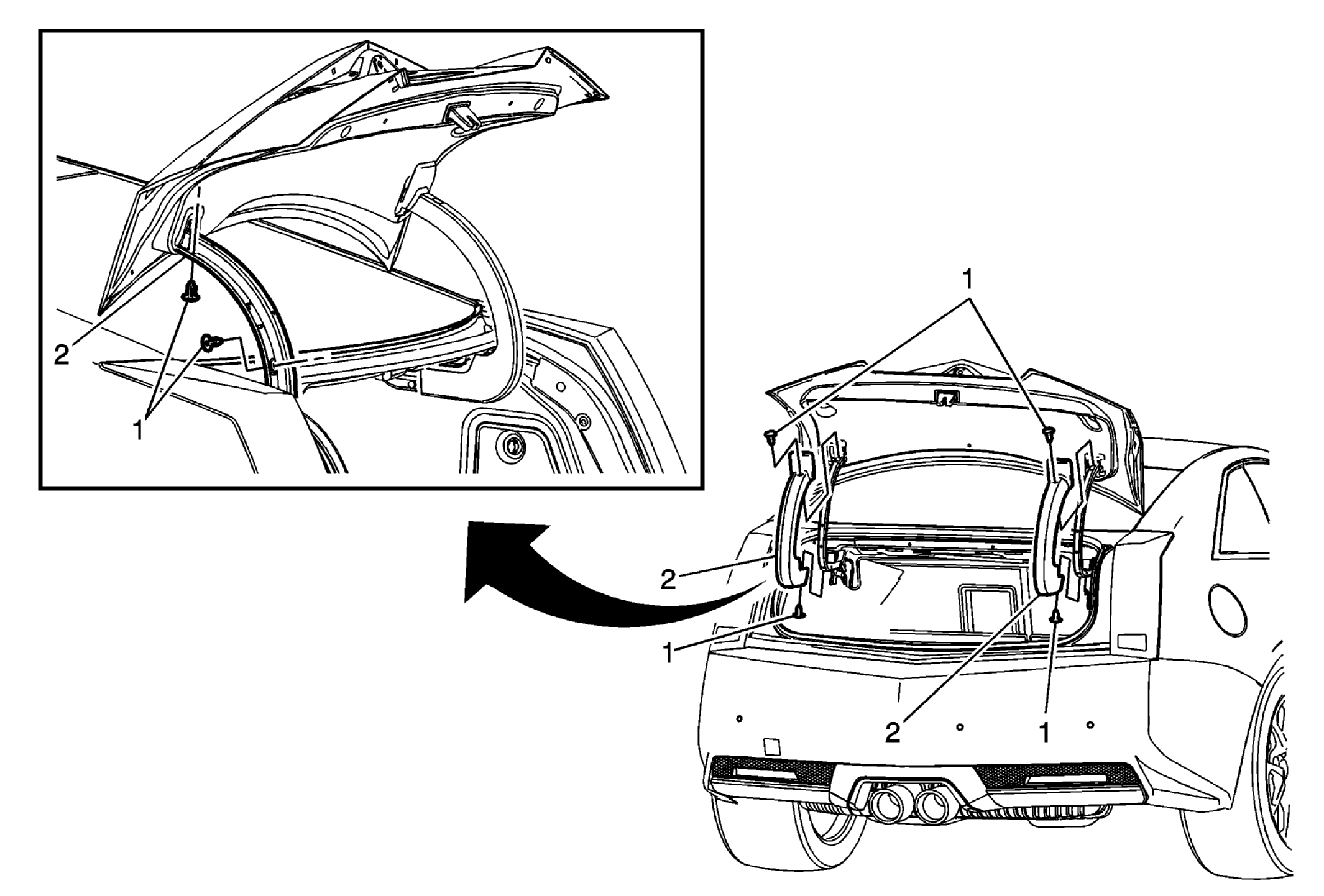

Fig 1: Rear Compartment Lid Hinge Covers & Retainers (Coupe)
GM2328165Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Rear Compartment Lid Hinge Cover Push-In Retainer (Qty: 4)
2 Rear Compartment Lid Hinge Cover (Qty: 2)
