Quarter Upper Trim Panel Replacement

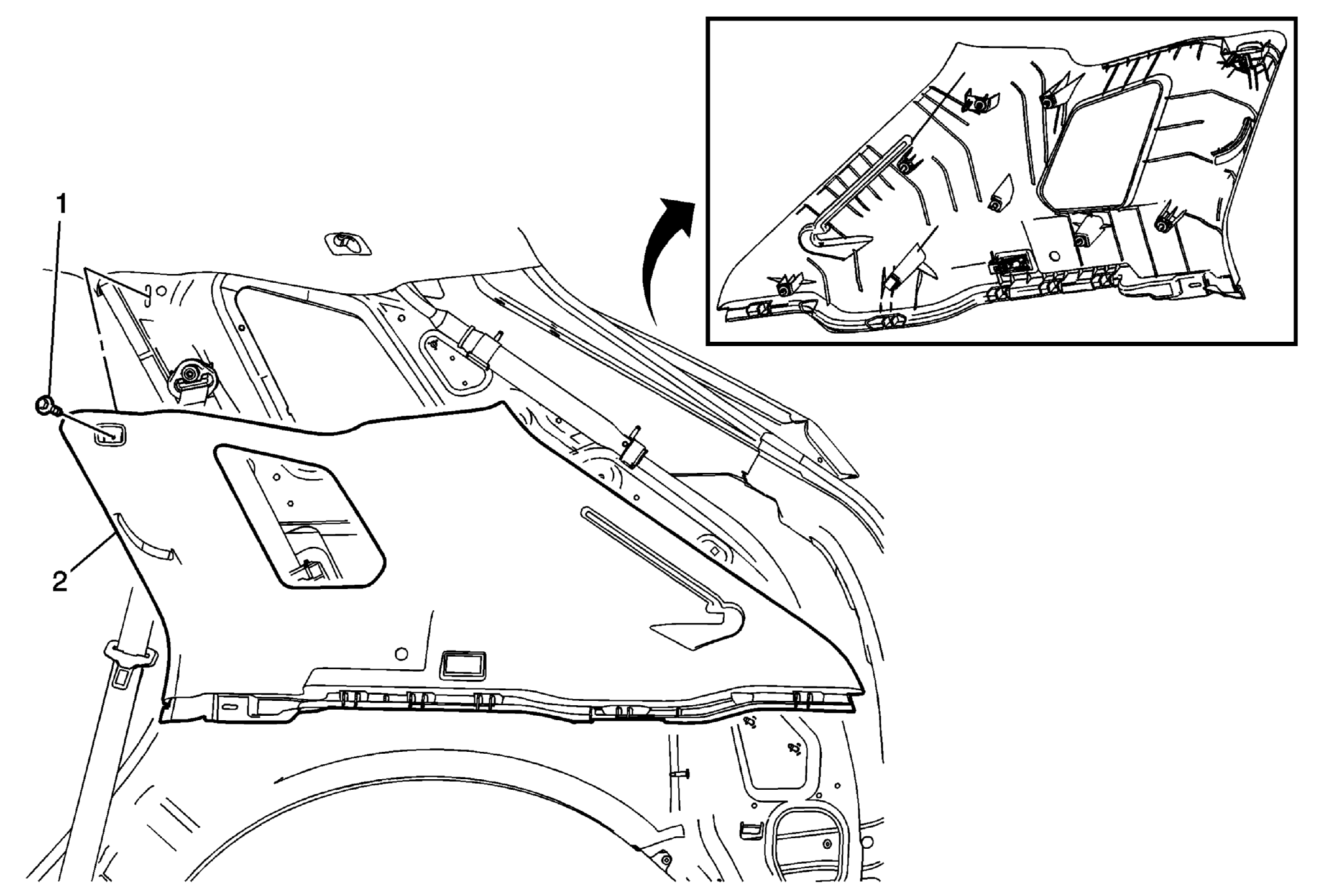

Fig 1: View Of Quarter Upper Trim Panel & Fastener
GM2236131Courtesy of GENERAL MOTORS COMPANY
Quarter Upper Trim Panel Replacement

Callout Component Name

Preliminary Procedures

  1. Disable the SIR system. Refer to SIR Disabling and Enabling .
  2. Remove the body side trim panel. Refer to Body Side Trim Panel Replacement .
  3. Remove the rear seat lower anchor plate bolt on the side of the trim panel being replaced. Refer to Rear Seat Retractor Side Belt Replacement .
  4. Remove the luggage shade, if equipped.
1 Quarter Upper Trim Panel Fastener
CAUTION:

Refer to Fastener Caution .
2 Quarter Upper Trim Panel Assembly

Procedure

  1. Loosen the rear compartment opening weather-strip.
  2. Route the seat belt through trim panel.
  3. Disconnect the electrical connector.
