Rear Seat Cushion Heater Replacement (40 Percent Seat)

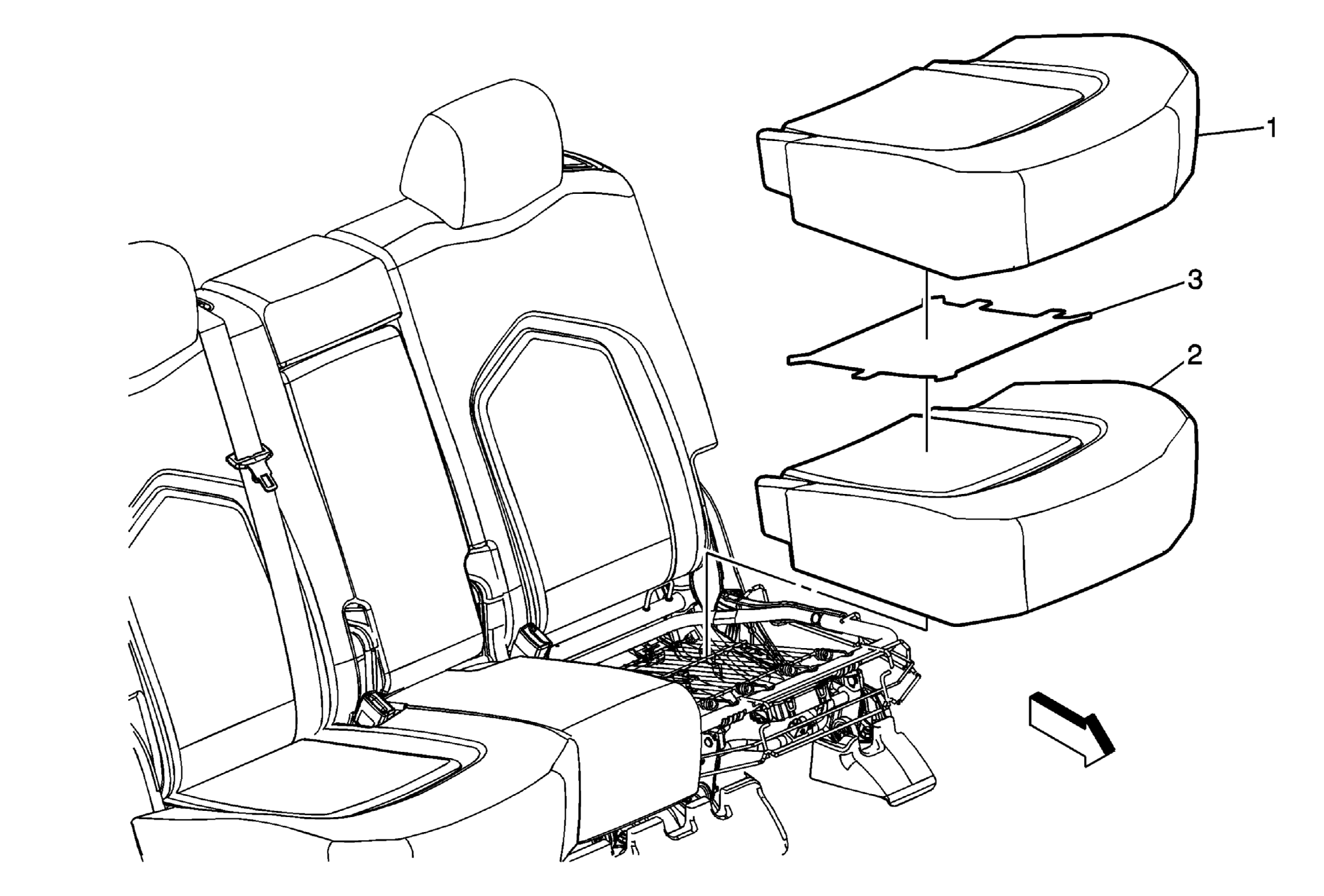

Fig 1: Identifying Rear Seat Cushion Heater, Pad & Cover (40 Percent Seat)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the rear seat. Refer to Rear Seat Removal and Installation . Remove the rear seat cushion cover and pad. Refer to Rear Seat Cushion Cover and Pad Replacement (40 Percent Seat) , Rear Seat Cushion Cover and Pad Replacement (60 Percent Seat) .
1	Rear Seat Cushion Cover Procedure Separate the seat cushion cover from the seat cushion pad.
2	Rear Seat Cushion Pad
3	Rear Seat Cushion Heater Procedure Disconnect the electrical connector. Remove the heater element leaving the old adhesive strips intact on the seat cushion cover trim. The new seat heater and strips will be placed over the old adhesive strips.
