Front Seat Back Cushion Vent Fan Replacement

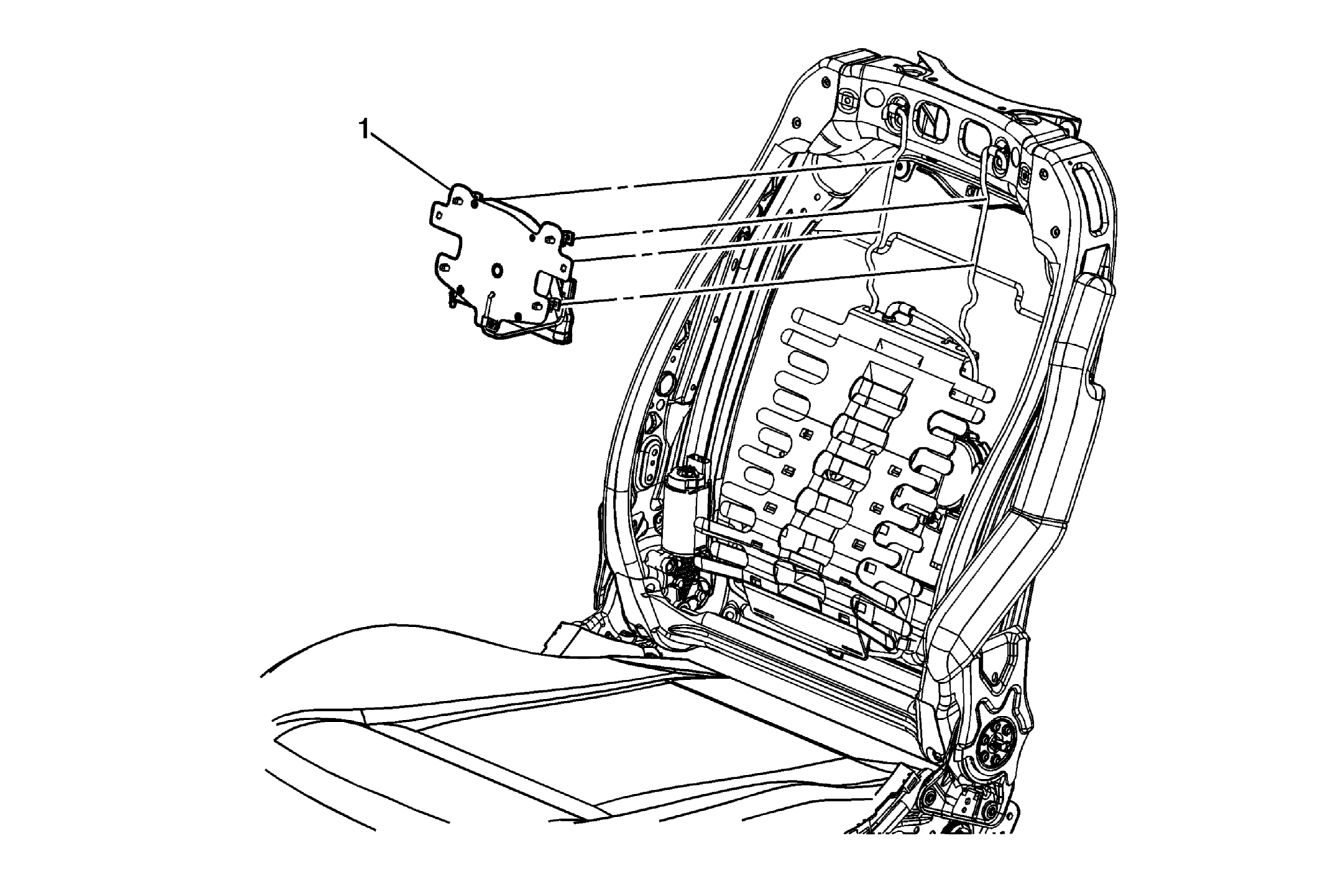

Fig 1: Identifying Front Seat Back Cushion Vent Fan
GM2230442Courtesy of GENERAL MOTORS COMPANY
Front Seat Back Cushion Vent Fan Replacement

Callout Component Name

Preliminary Procedure

  1. Remove the video display, if equipped. Refer to Video Display Replacement .
  2. Remove the driver or passenger seat back cushion finish panel. Refer to Front Seat Back Cushion Finish Panel Replacement (without UWG) , Front Seat Back Cushion Finish Panel Replacement (with UWG) .
1 Front Seat Back Cushion Ventilation Fan

Procedure

  1. Disconnect the ventilation heating and cooling module duct, if eqipped.
  2. Disconnect electrical connector.
  3. Disconnect the fan retainers from the lumbar sub system wires.
