Front Seat Back Cushion Finish Panel Replacement (without UWG)

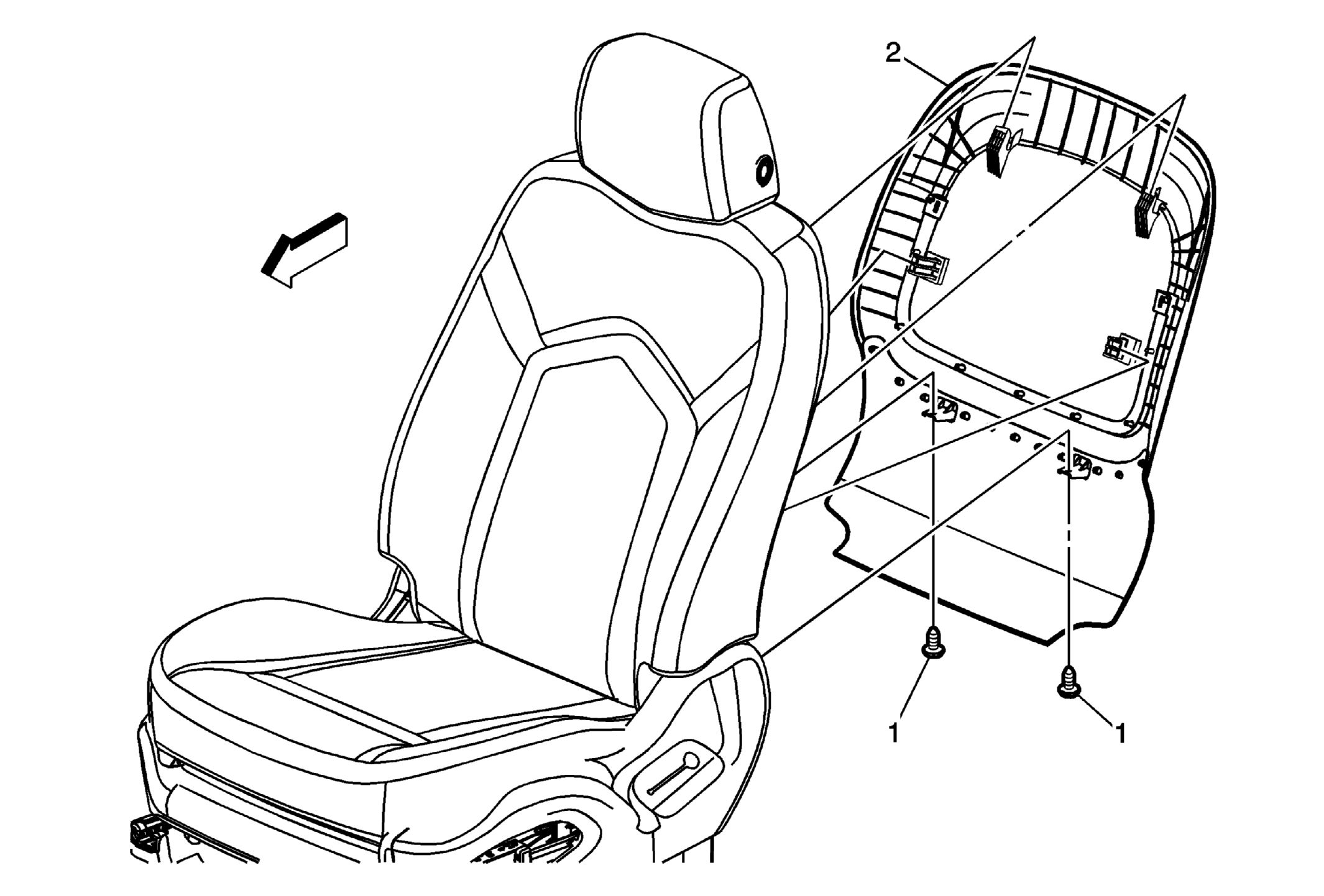

Fig 1: View Of Seat Back Cushion Finish Panel (Without UWG)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Front Seat Back Cushion Finish Panel Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure Detach the seat back cushion cover bottom two bungie clips from the crossbar. TIP: Pull the seat back cushion cover bottom back to gain access to the panel screws that attach the panel to the lumbar support bracket. Tighten 4 N.m (35 lb in)
2	Front Seat Back Cushion Finish Panel Procedure Pull the panel downward first to disengage the upper retainers. Move the finish panel and side clips to one side to disengage the panel from the seat frame.

Callout

Component Name

Front Seat Back Cushion Finish Panel Screw (Qty: 2)

CAUTION:

Refer to Fastener Caution .

Procedure
Detach the seat back cushion cover bottom two bungie clips from the crossbar.
TIP: Pull the seat back cushion cover bottom back to gain access to the panel screws that attach the panel to the lumbar support bracket.
Tighten
4 N.m (35 lb in)

Front Seat Back Cushion Finish Panel

Procedure

Pull the panel downward first to disengage the upper retainers.
Move the finish panel and side clips to one side to disengage the panel from the seat frame.
