Body Side Trim Panel Replacement

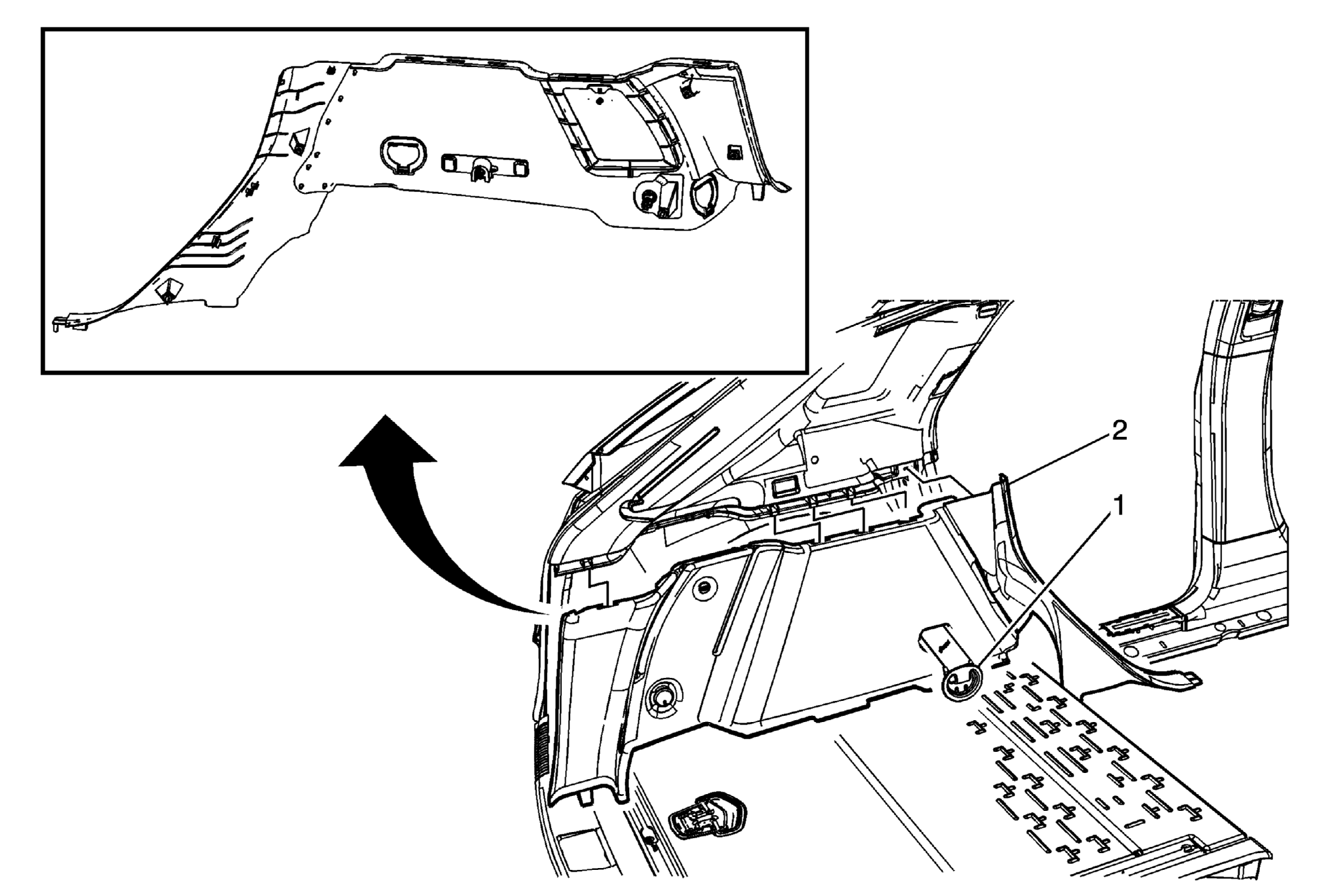

Fig 1: Identifying Body Side Trim Panel
GM2236643Courtesy of GENERAL MOTORS COMPANY
Body Side Trim Panel Replacement

Callout Component Name

Preliminary Procedures

  1. Move the rear seat to the full forward position.
  2. Remove the load floor panel rear extension panel. Refer to Load Floor Panel Rear Extension Panel Replacement .
  3. Remove the rear compartment floor stowage compartment cover. Refer to Rear Compartment Floor Stowage Compartment Cover Replacement .
  4. Reposition the center pillar lower trim panel to allow body side trim to pass. Refer to Center Pillar Lower Trim Panel Replacement .
1 Cargo Tie Down Loop Bezel (Qty: 2)
2 Trim Panel Assembly

Procedure

  1. Pull outward to disengage the trim panel retainers.
  2. Disconnect the electrical connectors.
