Rear End Spoiler Replacement
Courtesy of GENERAL MOTORS COMPANY Rear End Spoiler Replacement

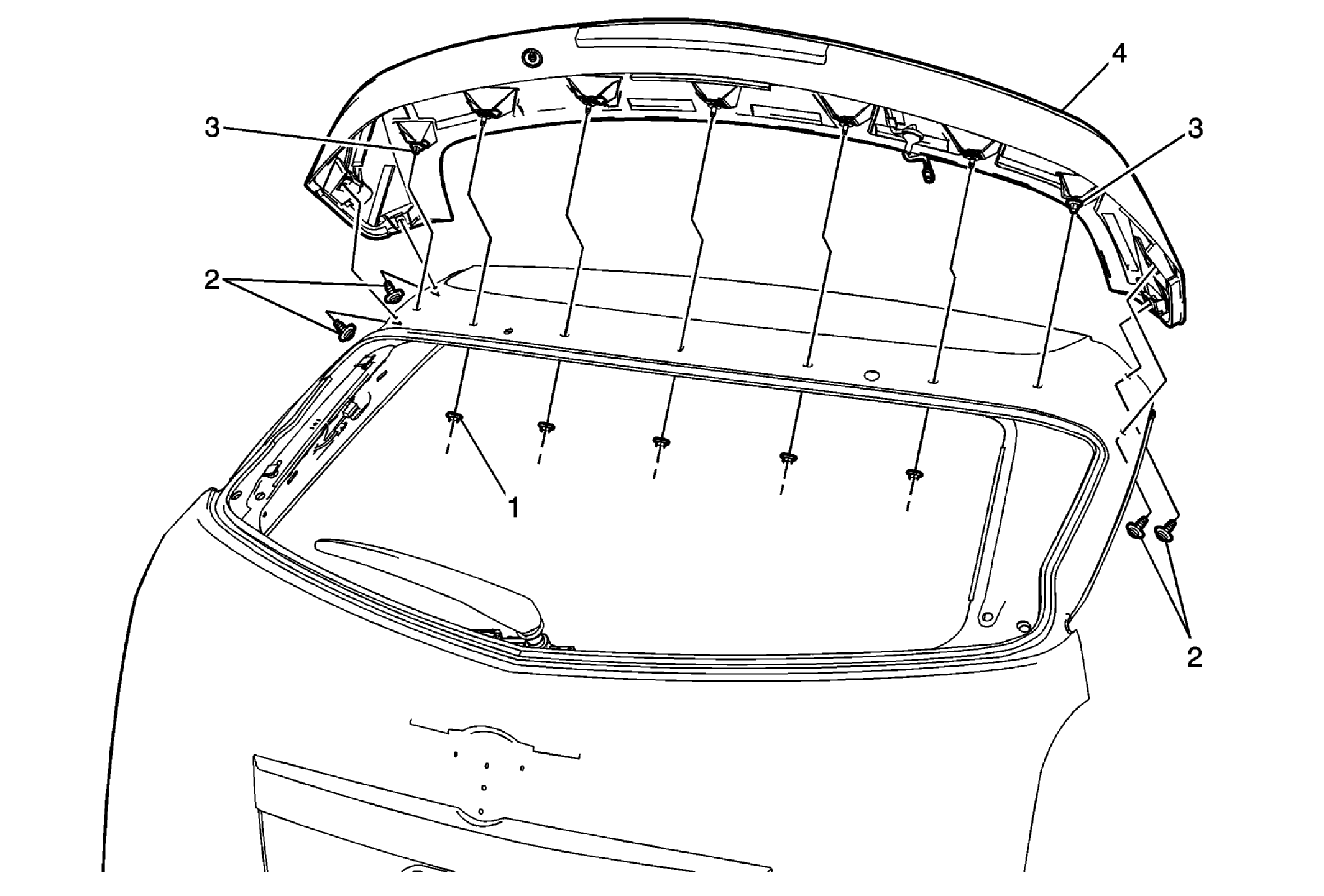

| Callout |
Component Name |
|
Preliminary Procedures
- Open and support the rear liftgate assembly.
- Remove the liftgate upper trim finish panel. Refer to Liftgate Upper Trim Finish Panel Replacement
.
- Remove the liftgate side upper sensors. Refer to Liftgate Side Sensor Replacement
.
- Remove the liftgate lower trim finish panel. Refer to Liftgate Lower Trim Finish Panel Replacement
.
|
| 1 |
Spoiler Nut (Qty: 5)
Tighten
6 N.m (53 lb in) |
| 2 |
Spoiler Screw (Qty: 4)
Tighten
6 N.m (53 lb in) |
| 3 |
Button Nose Clip (Qty: 2) |
| 4 |
Rear Spoiler Procedure
- Release the button clips from the upper outer liftgate panel.
- Close the rear liftgate in order to remove the spoiler assembly.
- Remove the rear washer hose nozzle. Refer to Rear Window Washer Nozzle Replacement
.
- Disconnect the electrical connector for the rear high mounted stop lamp.
- Remove the rear center high mounted stop lamp. Refer to High Mount Stop Lamp Replacement
and transfer.
- Ensure all the foam gaskets are in place on the button clips and retainer bolts prior to re-assembly of the spoiler onto the liftgate panel.
|
