Liftgate Lower Trim Finish Panel Replacement

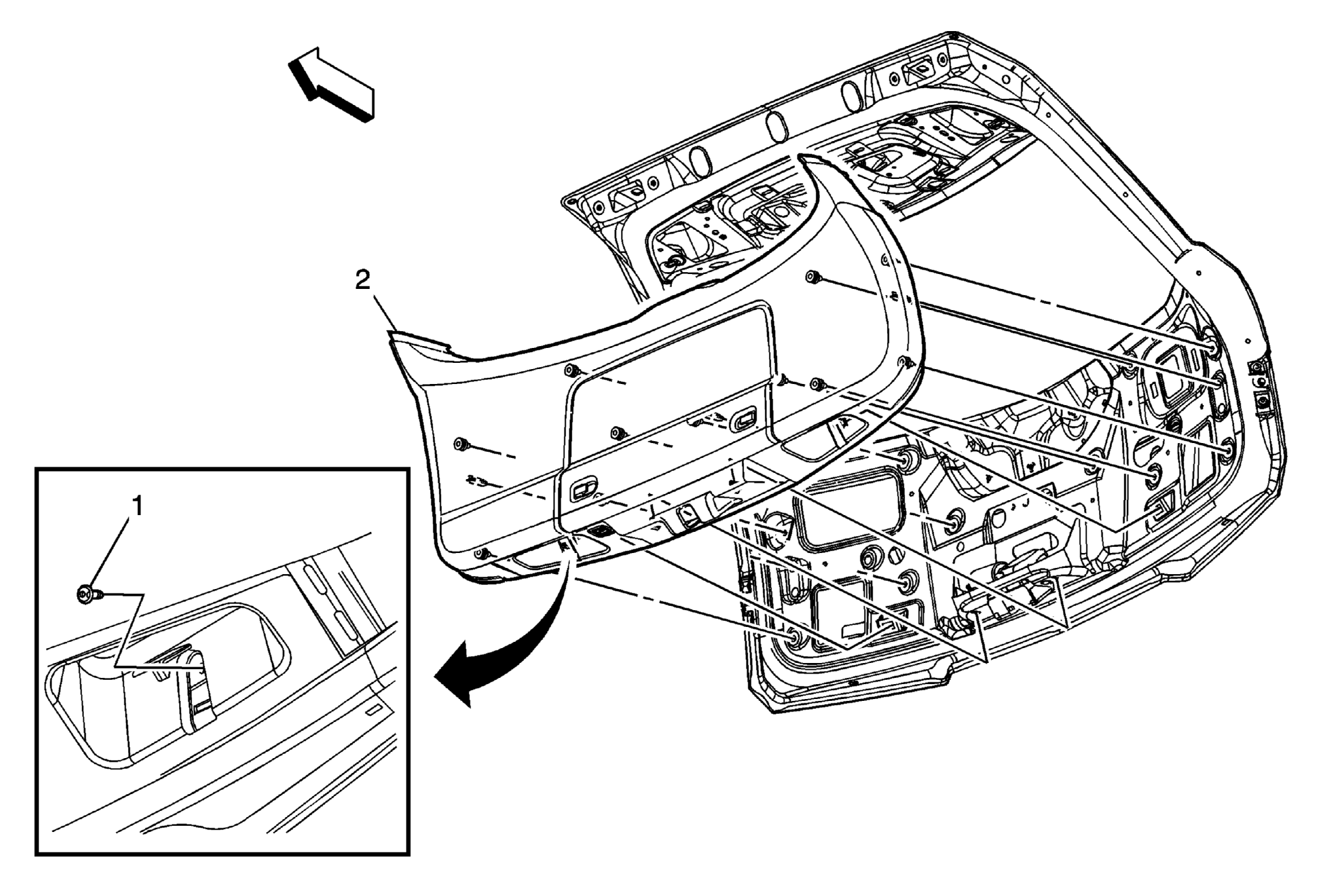

Fig 1: View Of Liftgate Lower Trim Finish Panel (Wagon)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Disengage the liftgate upper trim finish panel retainers. Refer to Liftgate Upper Trim Finish Panel Replacement . Remove upper and lower together. Separate after removal, if necessary. Pull outward to disengage the trim panel retainers.
1	Liftgate Lower Trim Finish Panel Fastener CAUTION: Refer to Fastener Caution .
2	Liftgate Lower Trim Finish Panel Assembly Procedure Use a trim panel removal tool to aid in the removal of the trim panel from the liftgate assembly. Disconnect the electrical connector, if equipped.

Callout

Component Name

Preliminary Procedure

Disengage the liftgate upper trim finish panel retainers. Refer to Liftgate Upper Trim Finish Panel Replacement .
Remove upper and lower together. Separate after removal, if necessary.
Pull outward to disengage the trim panel retainers.

Liftgate Lower Trim Finish Panel Fastener

CAUTION:

Liftgate Lower Trim Finish Panel Assembly

Procedure

Use a trim panel removal tool to aid in the removal of the trim panel from the liftgate assembly.
Disconnect the electrical connector, if equipped.
