Liftgate Upper Trim Finish Panel Replacement

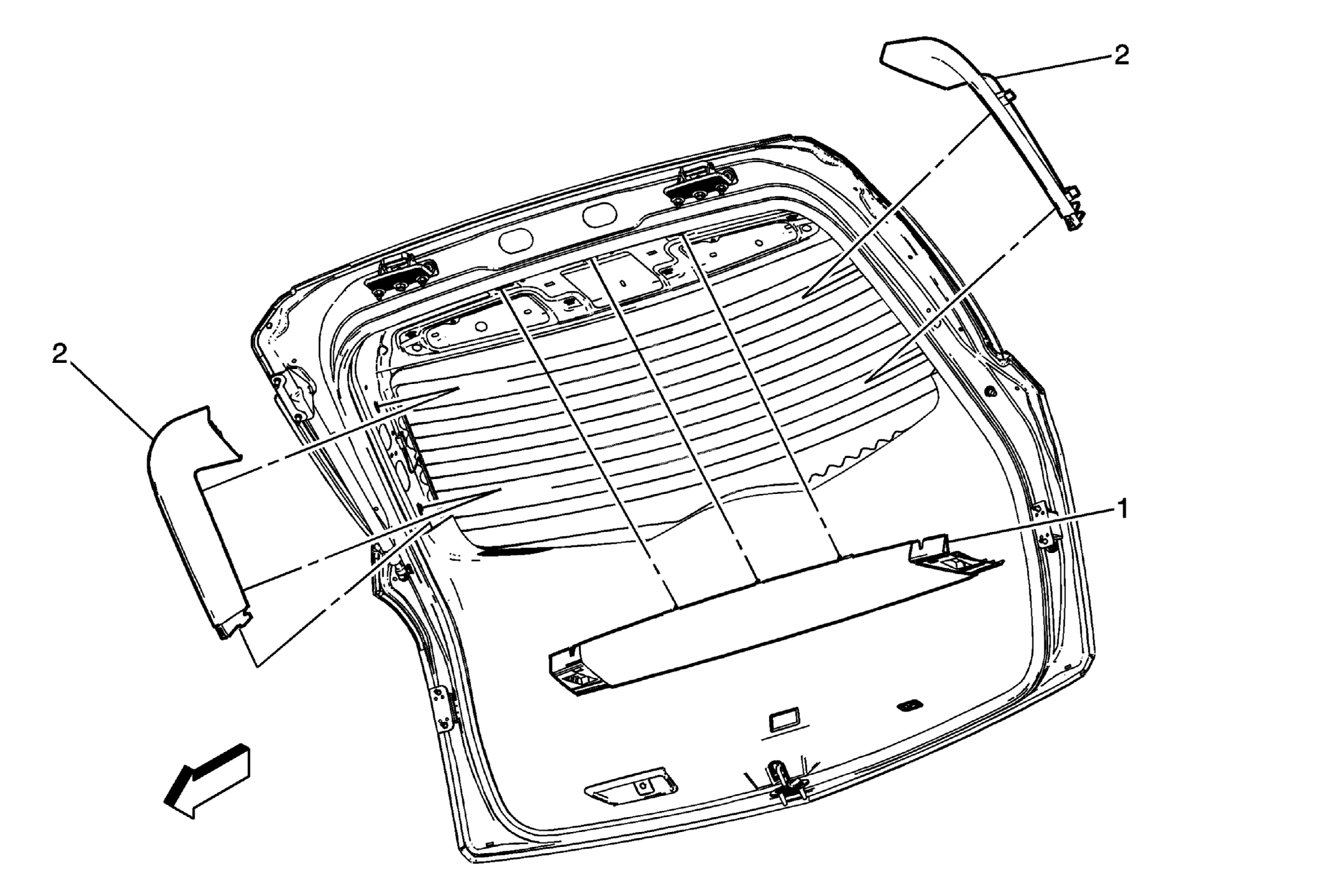

Fig 1: Identifying Liftgate Upper Trim Finish Panel
GM2352153Courtesy of GENERAL MOTORS COMPANY
Liftgate Upper Trim Finish Panel Replacement

Callout Component Name

Preliminary Procedure

  1. Disengage the liftgate lower trim finish panel retainers. Refer to Liftgate Lower Trim Finish Panel Replacement .
  2. Remove upper and lower together. Separate after removal, if necessary.
  3. Pull outward to disengage the trim panel retainers.
1 Liftgate Upper Trim Finish Panel Assembly
2 Liftgate Trim Finish Panel Assembly (Qty: 2)
